Click image to open expanded view

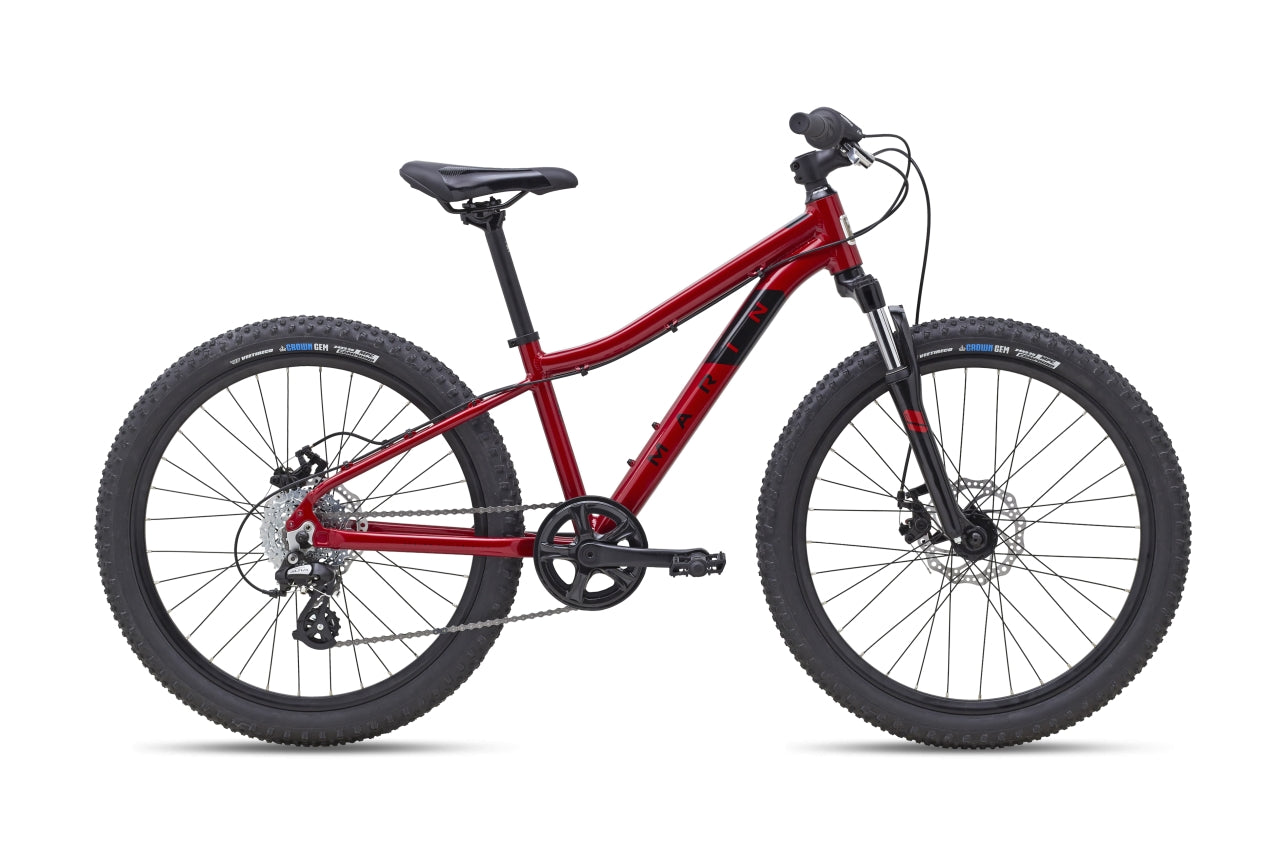

2022 BAYVIEW TRAIL

SKU: MAFB220950001

Price: $899.00

Size:

COLOUR:

Product variants

Pickup currently unavailable at In-Store Inventory

In stock! Usually ships same day to main cities around NZ. Please note Bikes can take up to 2-5 days for delivery.

Quantity

FUN!

The Bayview Trail 24” and Hidden Canyon 20” bikes are built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.

TRAIL 24

01. FRAME	Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts
02. FRONT SUSPENSION	SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
03. RIMS	Marin, Double Wall Alloy
04. HUB, REAR	Formula, 32H
05. HUB, FRONT	Formula, 32H
06. SPOKE, NIPPLES	14g Stainless Steel
07. TIRES	Vee Tire Crown Gem, 24”x2.25”, Wire Bead
08. DERAILLEUR, REAR	Shimano Altus, 7-Speed
09. DERAILLEUR, FRONT	-
10. SHIFT LEVER	Shimano Revo Twist 1x7-Speed
11. CRANKSET	Forged Alloy, 30T, 152mm, Ring Guard
12. BOTTOM BRACKET	Sealed Cartridge Bearings, Square Taper
13. CHAIN	KMC Z50
14. CASSETTE	Shimano HG-20 7-Speed, 12-32T
15. BRAKE, FRONT	Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
16. BRAKE, REAR	Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
17. BRAKE LEVERS	Kids Specific Short Reach Alloy Lever
18. HANDLEBAR	Marin Riser, 30mm Rise, 590mm Width
19. STEM	Marin Alloy, 60mm
20. GRIPS	Marin Dual Density
21. HEADSET	FSA, Threaded
22. SEATPOST	Marin Alloy, 27.2mm
23. SADDLE	Marin Kids MTB
24. PEDALS	Kids Specific Nylon Pedal

	ONE SIZE
STACK	502.75
REACH	331.92
HEADTUBE ANGLE	70°
HEADTUBE LENGTH	105
SEATTUBE ANGLE	73°
SEATTUBE LENGTH	321
TOPTUBE EFFECTIVE	485
BB HEIGHT	283
BB DROP	25
CHAINSTAY	400
WHEELBASE	946.97
STANDOVER HEIGHT	581.19
FORK OFFSET	40
SEATPOST DIAMETER	27.2
HANDLEBAR WIDTH	590
STEM LENGTH	70
CRANK LENGTH	152
