22 BOBCAT TRAIL 4 29"

SKU: MAHA39003

Sale price: $899.00
List price: $1,299.00
You save: $400.00 (31%)

Size:

Product variants

Pickup available at In-Store Inventory

Usually ready in 24 hours

View store information

Only 1 available!

Quantity

HARDTAIL TRAIL RIDING

AGGRESSIVE SINGLETRACK

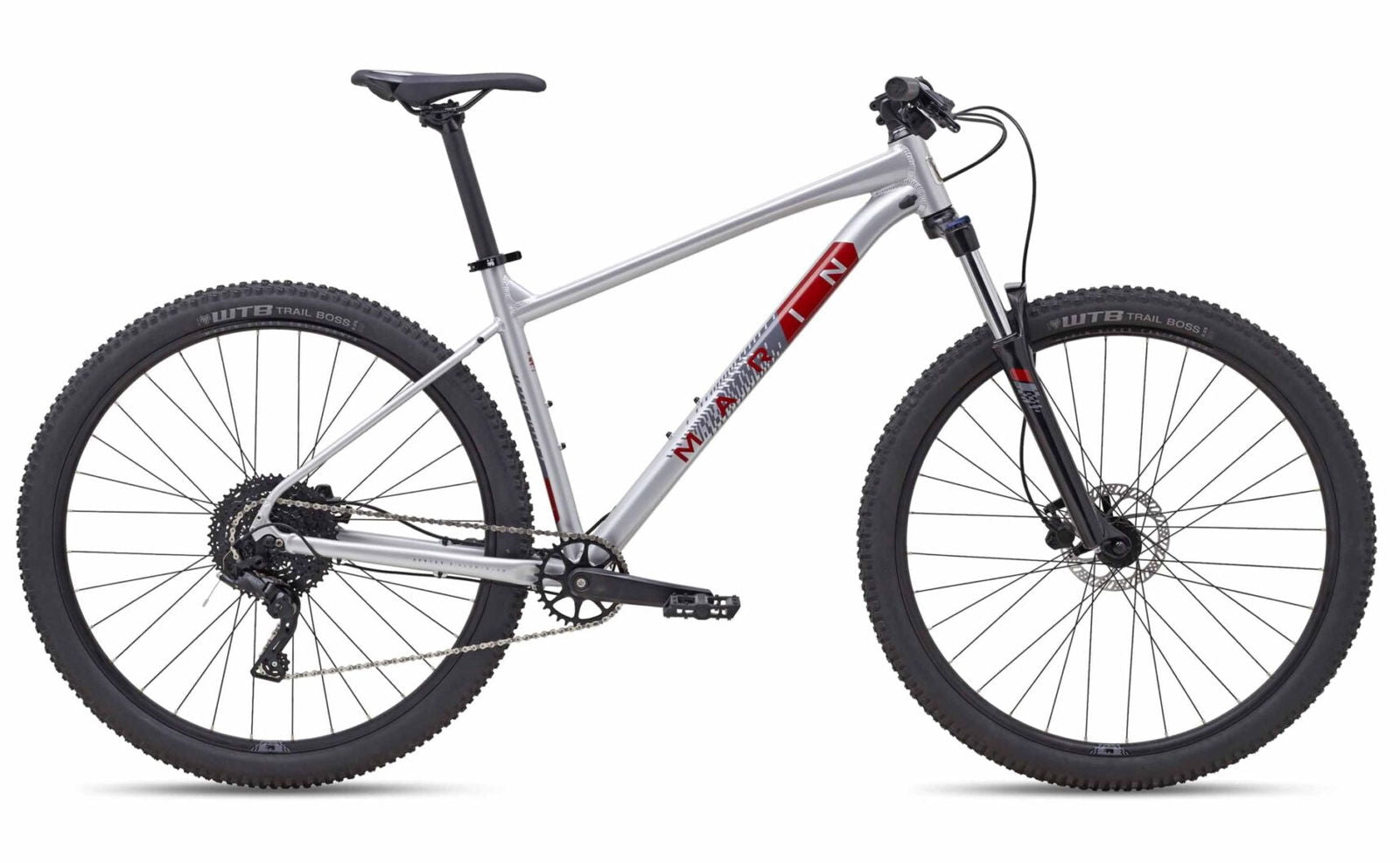

The Marin Bobcat Trail 4 is our mid-level Bobcat, packing plenty of fun into a bang-for-bike package. Very much a legit MTB, the Bobcat 4 is stacked with quality kit for off-road adventures and includes an SR/Suntour fork, microSHIFT Advent wide-range 9-speed shifting and Tektro hydraulic brakes. Like all Bobcats, it’s built around a fast, comfy and fun Series 2 aluminum frame and is available in 27.5” or 29” wheels, depending on frame size.

Key upgrade over the Bobcat Trail 3:

microSHIFT Advent 9 1x Drivetrain

Please note - specifications & price subject to change without prior notice.

01. FRAME	Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
02. FRONT SUSPENSION	SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
03. RIMS	Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
04. HUB, REAR	Forged Alloy, Disc, 32H
05. HUB, FRONT	Forged Alloy, Disc, 32H
06. SPOKE, NIPPLES	14g Black Stainless Steel
07. TIRES	WTB Trailboss Comp, 27.5/29x2.25, Wire Bead
08. DERAILLEUR, REAR	MicroSHIFT Advent 9, Clutch
09. DERAILLEUR, FRONT	-
10. SHIFT LEVER	MicroSHIFT Advent 9 Trail
11. CRANKSET	Alloy Crank, Steel Narrow-Wide Chainring, 32T
12. BOTTOM BRACKET	Sealed Cartridge Bearings, Square Taper
13. CHAIN	KMC X9
14. CASSETTE	SunRace 9-Speed, 11-46T
15. BRAKE, FRONT	Tektro M275 Hydraulic Disc, 180mm Rotor
16. BRAKE, REAR	Tektro M275 Hydraulic Disc, 160mm Rotor
17. BRAKE LEVERS	Tektro M275 Hydraulic Disc
18. HANDLEBAR	Marin 31.8 Riser, 12mm Rise, 780mm Width
19. STEM	Marin Alloy, 31.8mm Clamp, 45mm
20. GRIPS	Marin MTB, Closed End
21. HEADSET	FSA No.10-P
22. SEATPOST	Marin Alloy, 30.9
23. SADDLE	Marin MTB
24. PEDALS	Nylon Platform

	S	M (27.5)	M (29)	L	XL
STACK	599.3	604	629.3	634	638.5
REACH	435	445	445	465	480
HEADTUBE ANGLE	67.5°	67.5°	67.5°	67°	67°
HEADTUBE LENGTH	105	110	110	110	120
SEATTUBE ANGLE	74.5°	74.5°	74.5°	74.5°	74.5°
SEATTUBE LENGTH	381	431	431	431	520
TOPTUBE EFFECTIVE	601	612.5	619.5	640.8	657
BB HEIGHT	307	307	307	311.5	311.5
BB DROP	48	48	48	61	61
CHAINSTAY	425	425	425	440	440
WHEELBASE	1133.3	1145.2	1177.4	1199.3	1216.3
STANDOVER HEIGHT	659.07	705.48	714.04	744.93	774.59
FORK OFFSET	46	46	46	46	46
SEATPOST DIAMETER	30.9	30.9	30.9	30.9	30.9
HANDLEBAR WIDTH	780	780	780	780	780
STEM LENGTH	45	45	45	45	45
CRANK LENGTH	170	170	170	170	170
