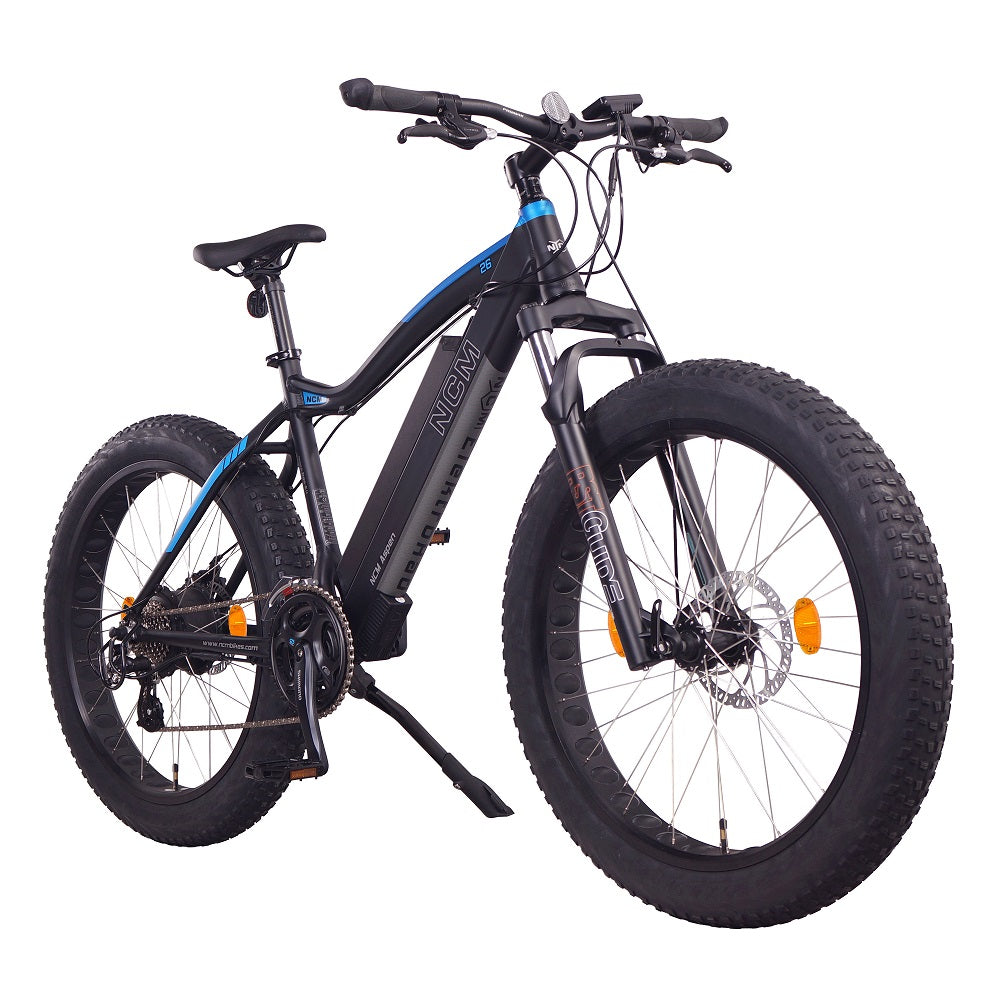

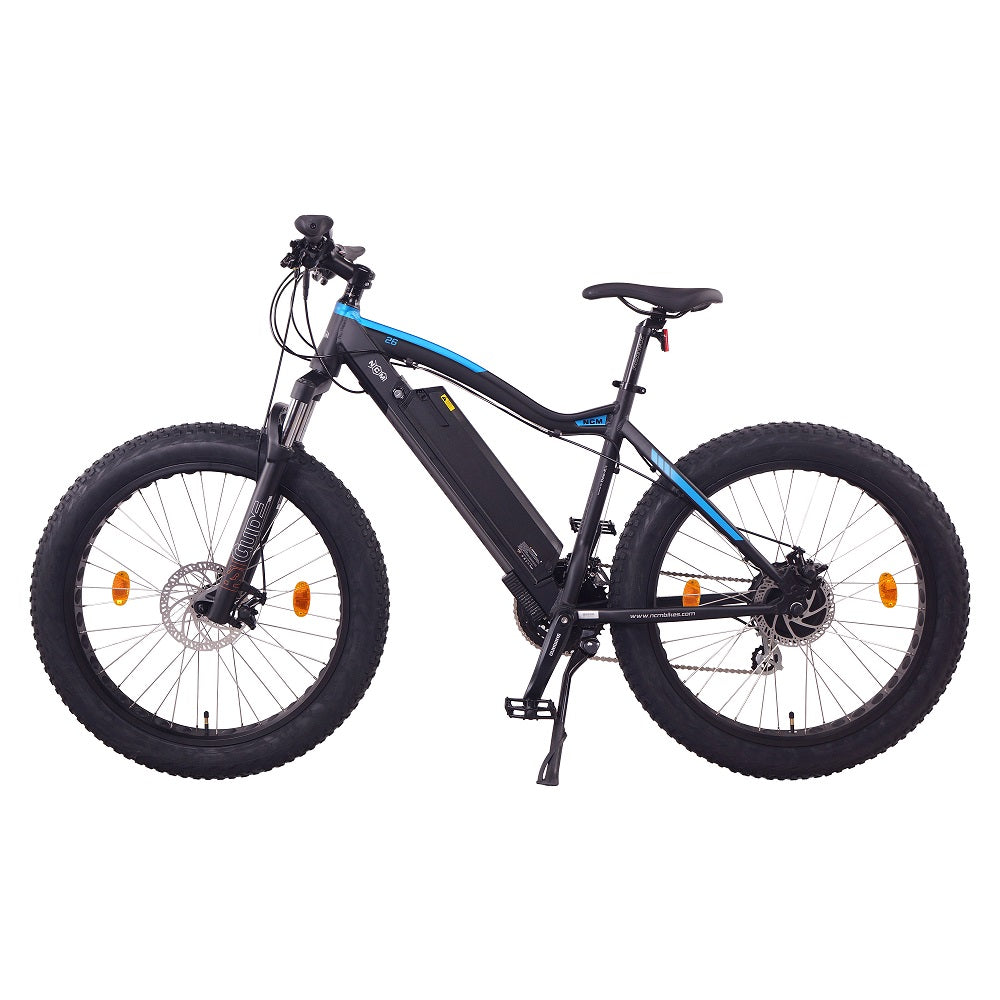

With a large tire width, the NCM Aspen + is hugely capable. Developed in Iceland for riding on snow and ice the Fat bikes large tires surface area make it great for soft terrain including sand and gravel.

This E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.

Introduction

With a large tire width, the NCM Aspen + is hugely capable. Developed in Iceland for riding on snow and ice the Fat bikes large tires surface area make it great for soft terrain including sand and gravel. This E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.

Key Features

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls easily accessible
• Supplied with 48V to deliver a high output power
• Over 768Wh capacity for a longer distance
• Reach up to 150 km (depending on the conditions)
• Battery integrated in the frame for better aesthetics
• Easily removable battery so you can charge it anywhere
• A built-in USB port with 5V to charge mobile phones
• Equipped with Throttle and Pedal assist.

BIKE COMPONENTS

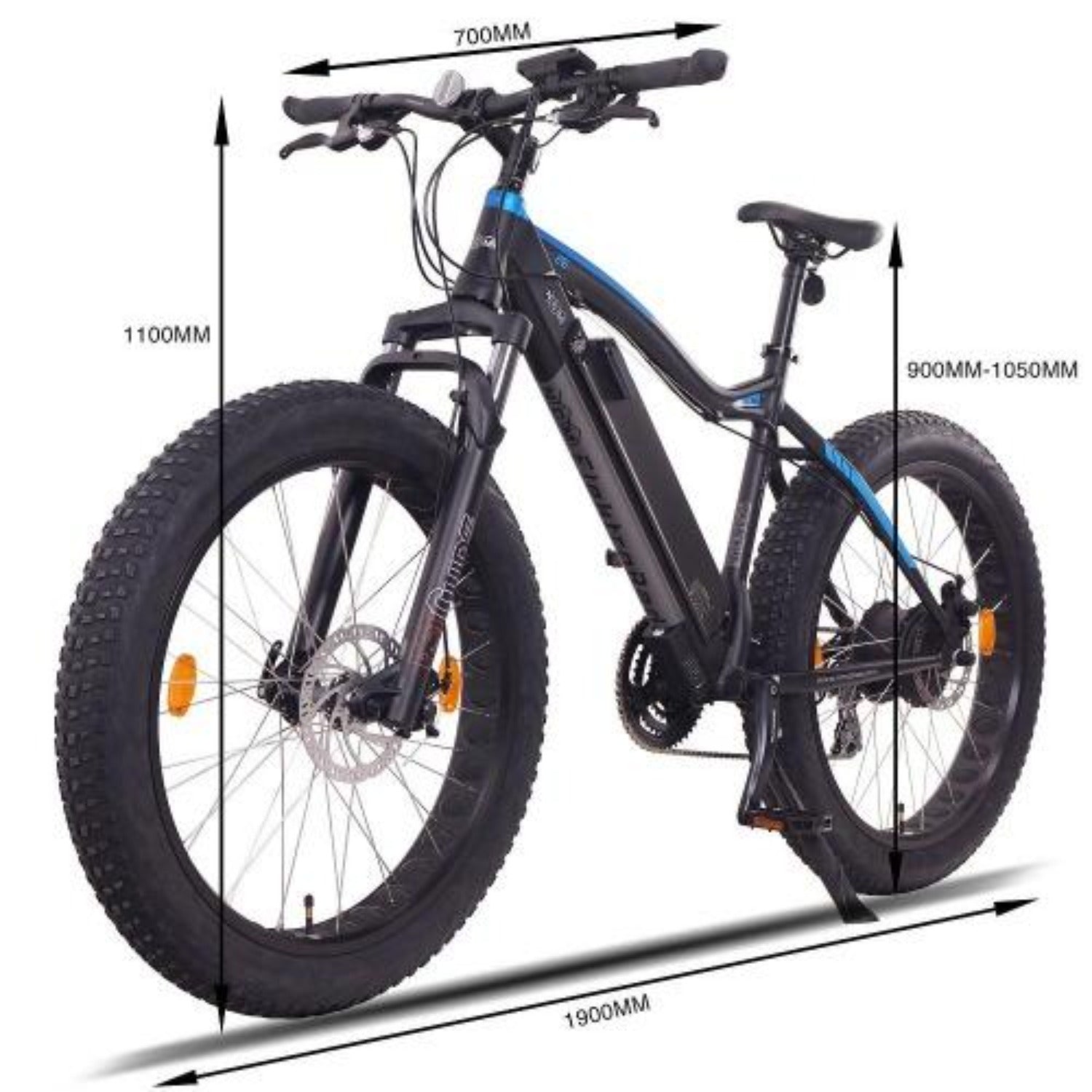

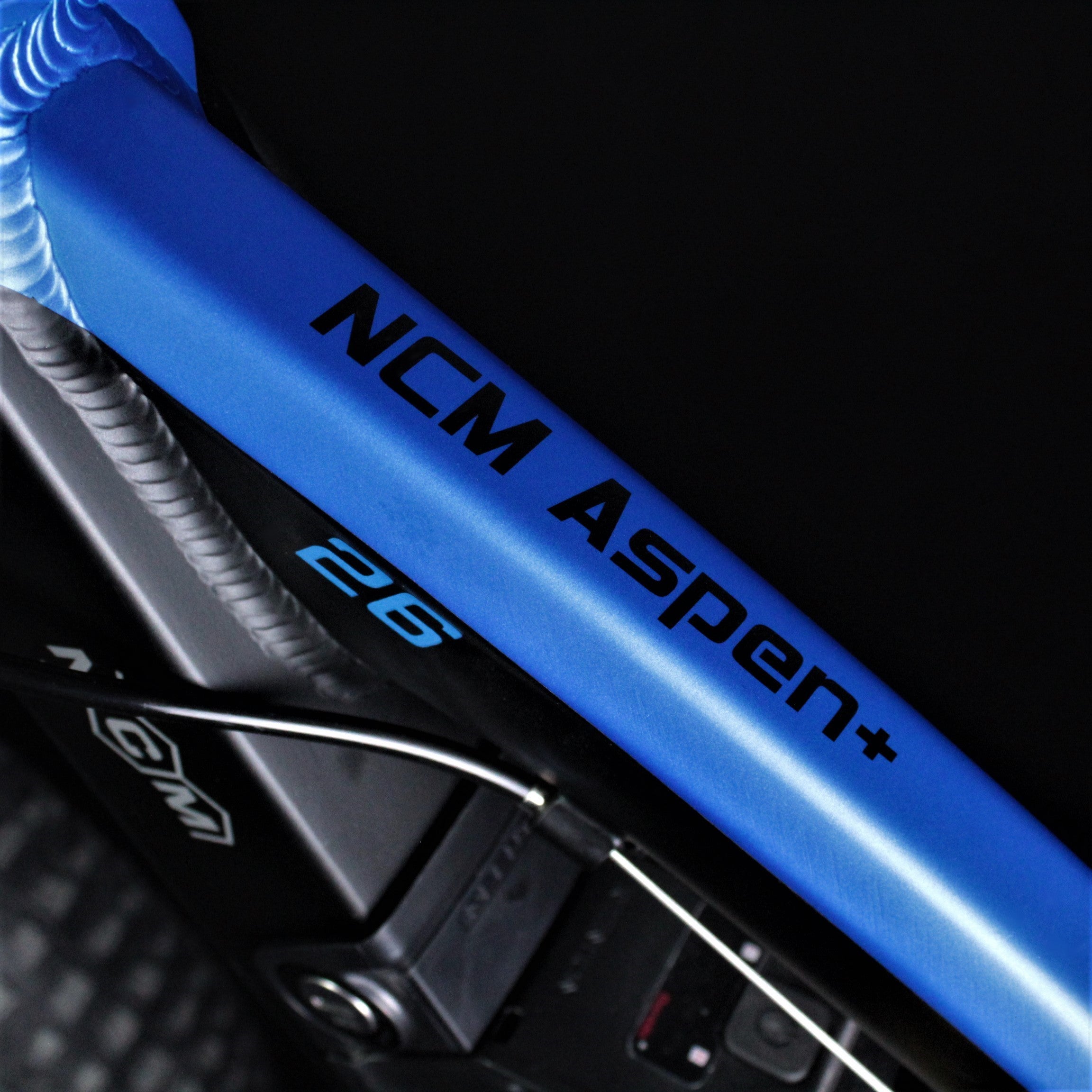

Frame: Alu. 6061, 26"*18.9 inches

Suspension Fork: RST, Guid-T-26, Alu. With suspension

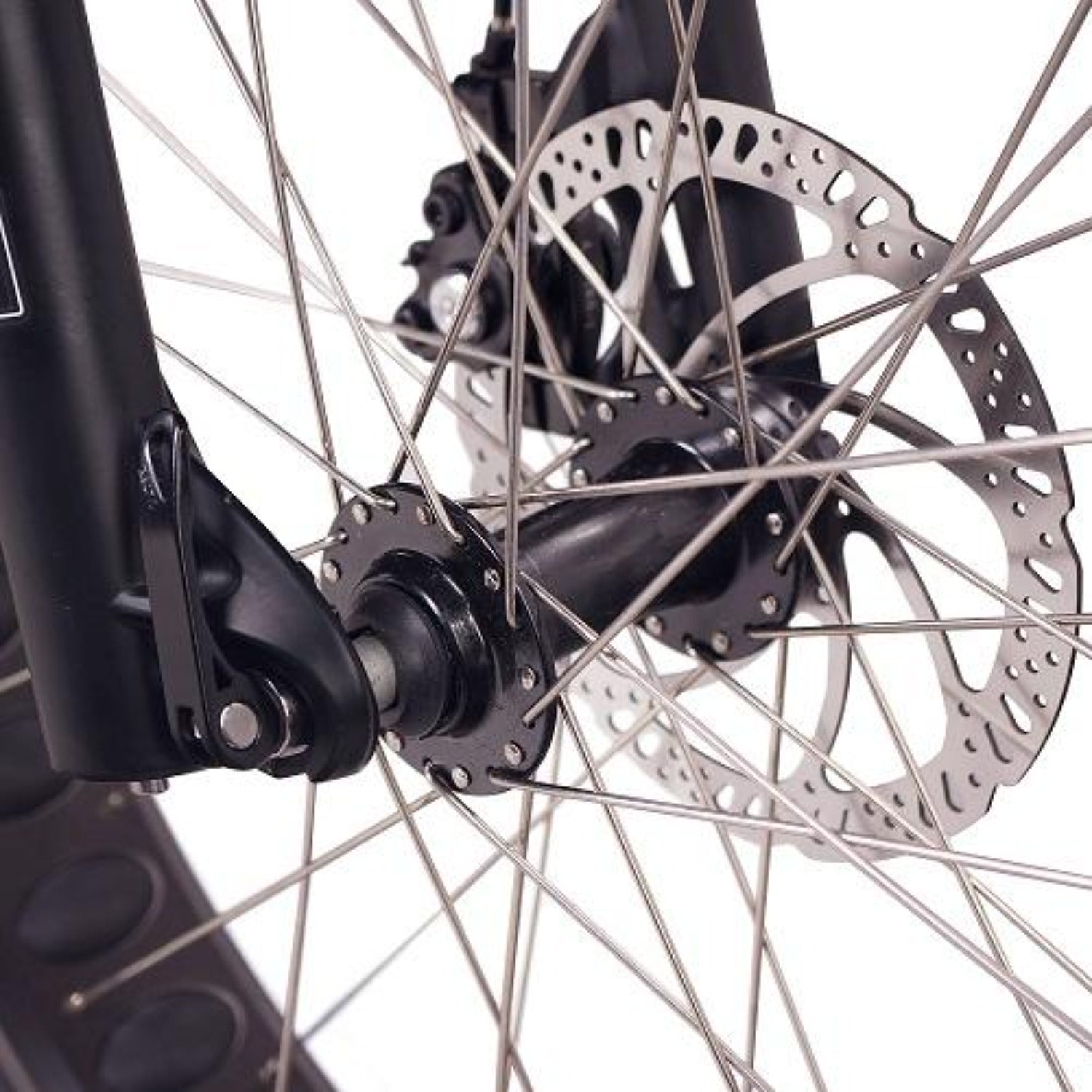

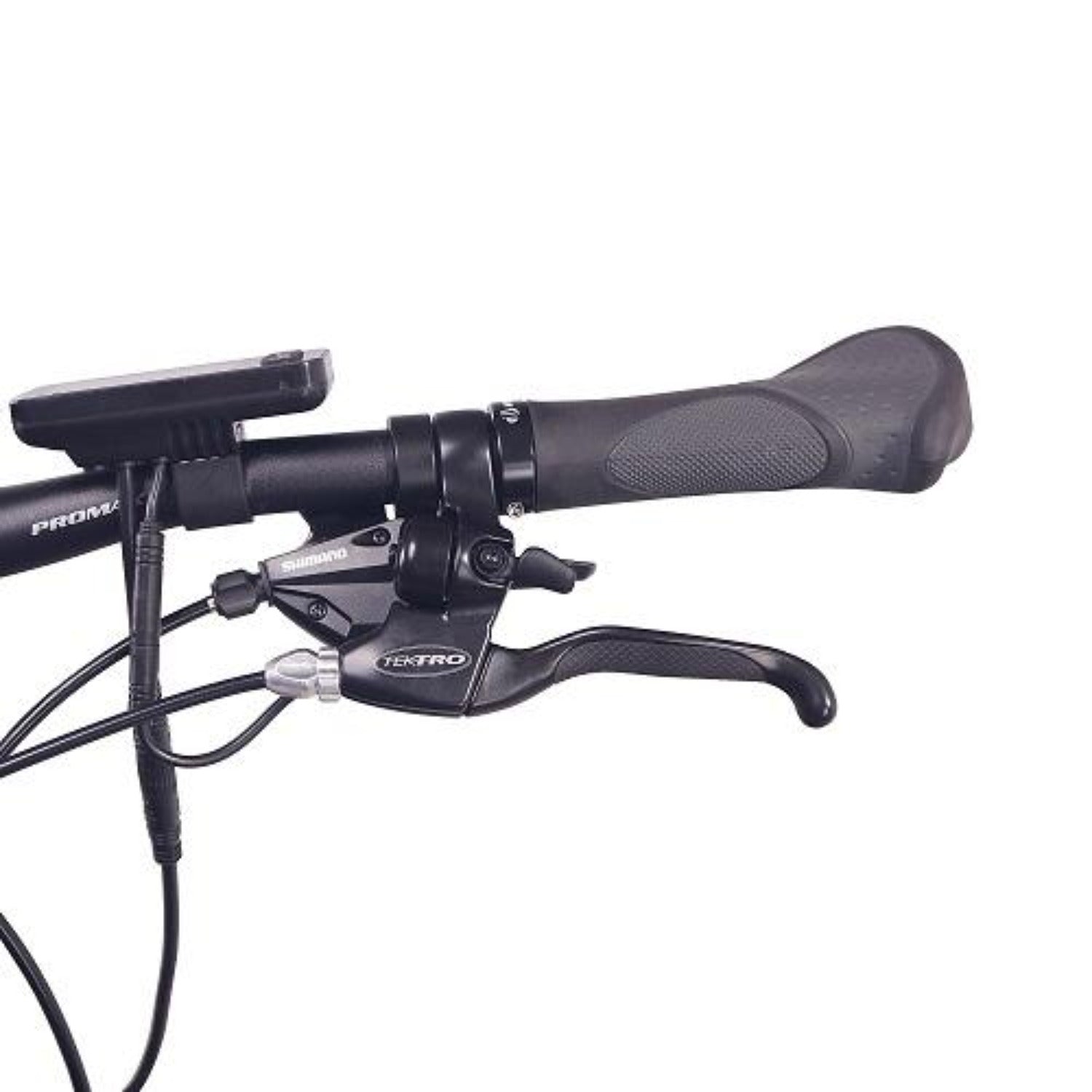

Brake: F/R: Tektro Mechanical Disc Brakes

Freewheel: 8 Speed, 11-32T, Sliver

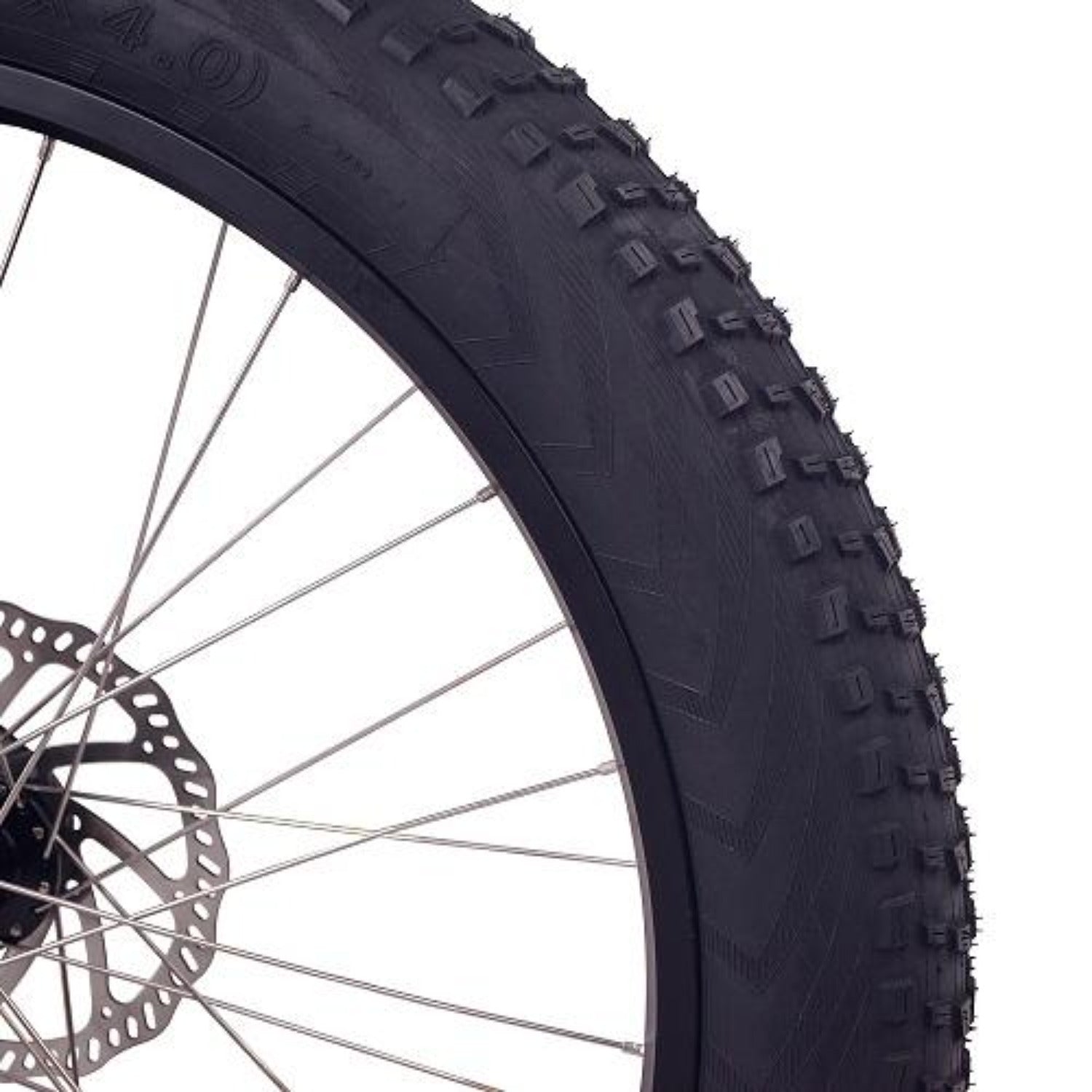

Tire: CST, C1752, 26"*4.0, Black

Saddle: Selle Royal, LOOKIN, Black

Stem: Promax. Alu.MA-471, Ext 90mm

Crank: Shimano, Acrea, 28/38/48T

Shifter: Shimano, Altus, F: M310-L, 3-Speed; R: M310-8R, 8-Speed

Front Derailleur: Shimano, Altus, M310, 3-Speed

Rear Derailleur: Shimano, Acera, M360, 8-Speed

ELECTRIC COMPONENTS

Battery: DEHAWK, I5-4816P, 48V 16AH, 768WH, with USB port

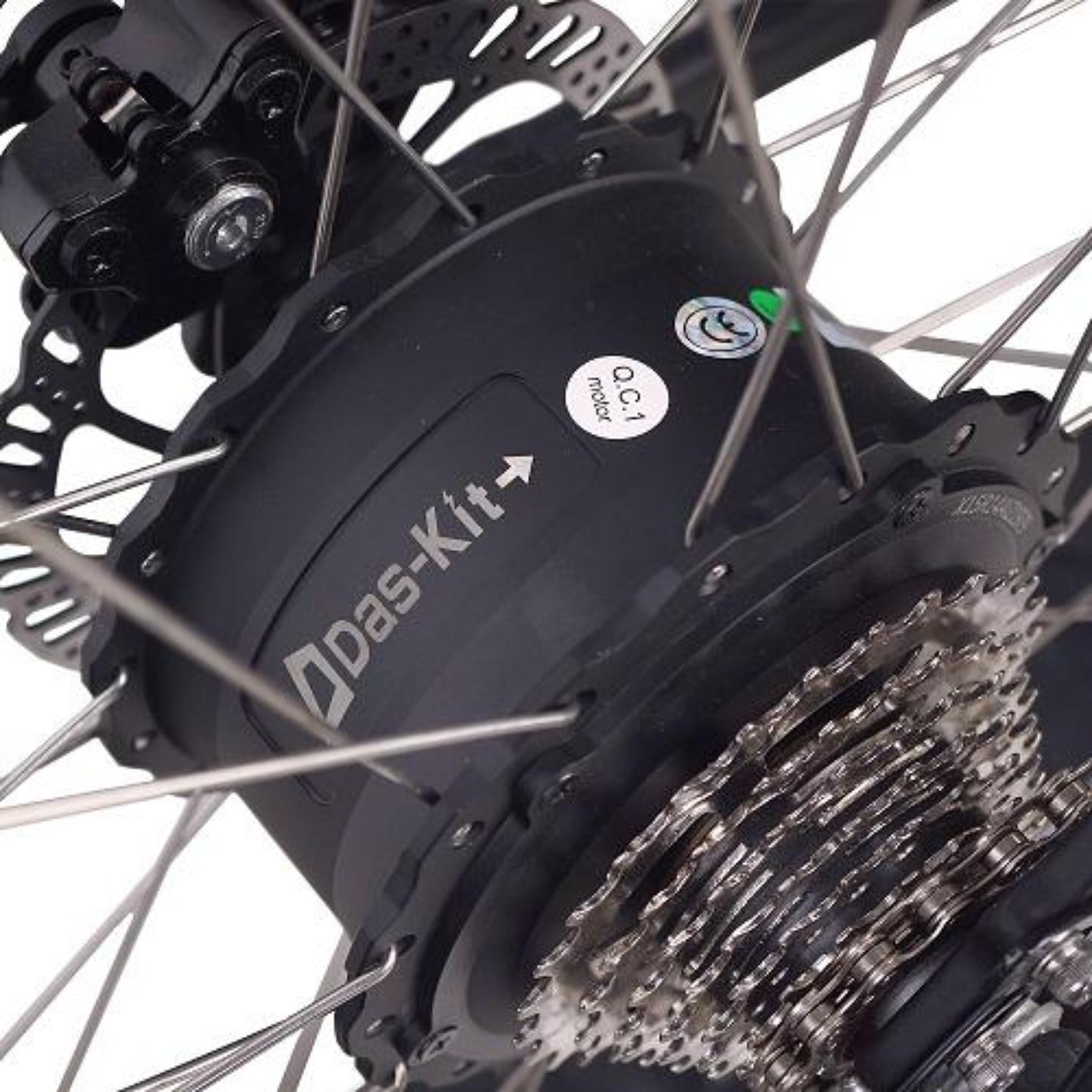

Hub Motor Rated / Peak Power: Das-kit, X15-fat, Rear drive motor, 250wh, 48V, 20mph

Controller: Das-Kit, CT5-I5, 48V 18A

Charger: 48V 3A, US standard

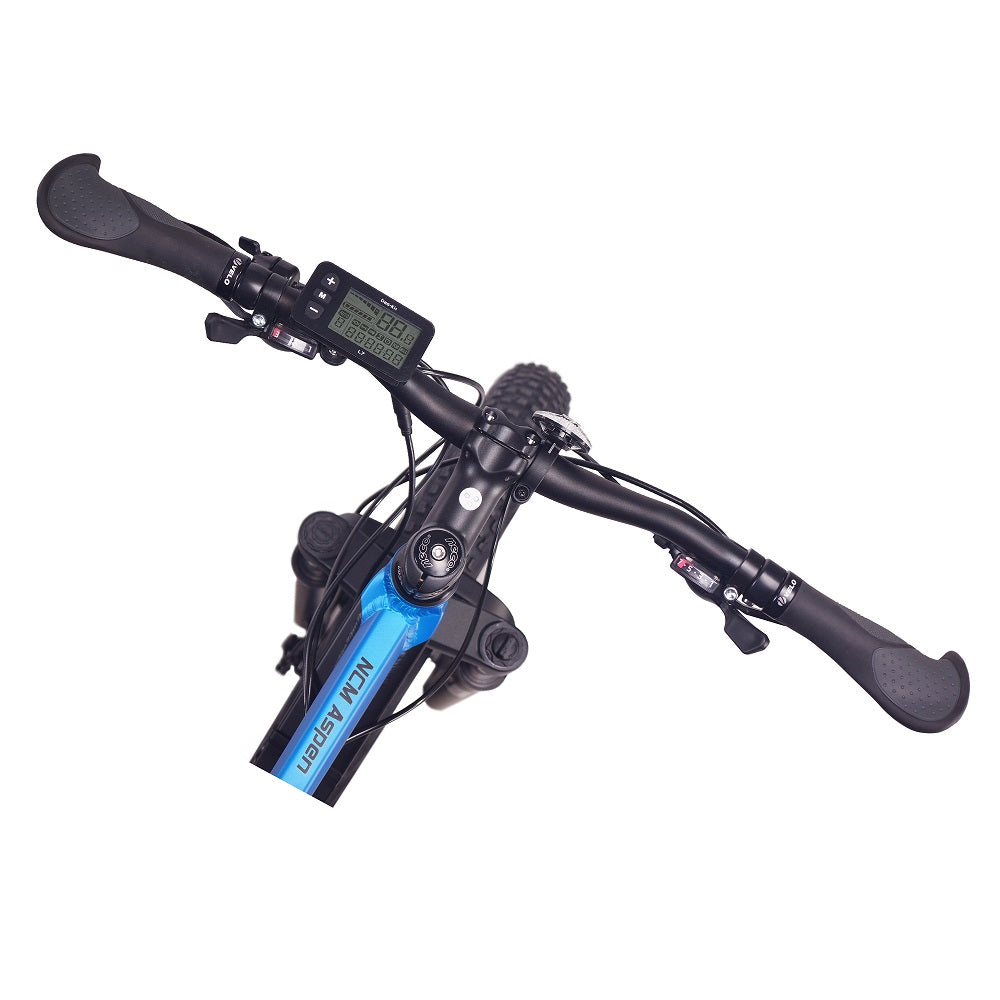

Display: Das-Kit, C7, 6 Levels

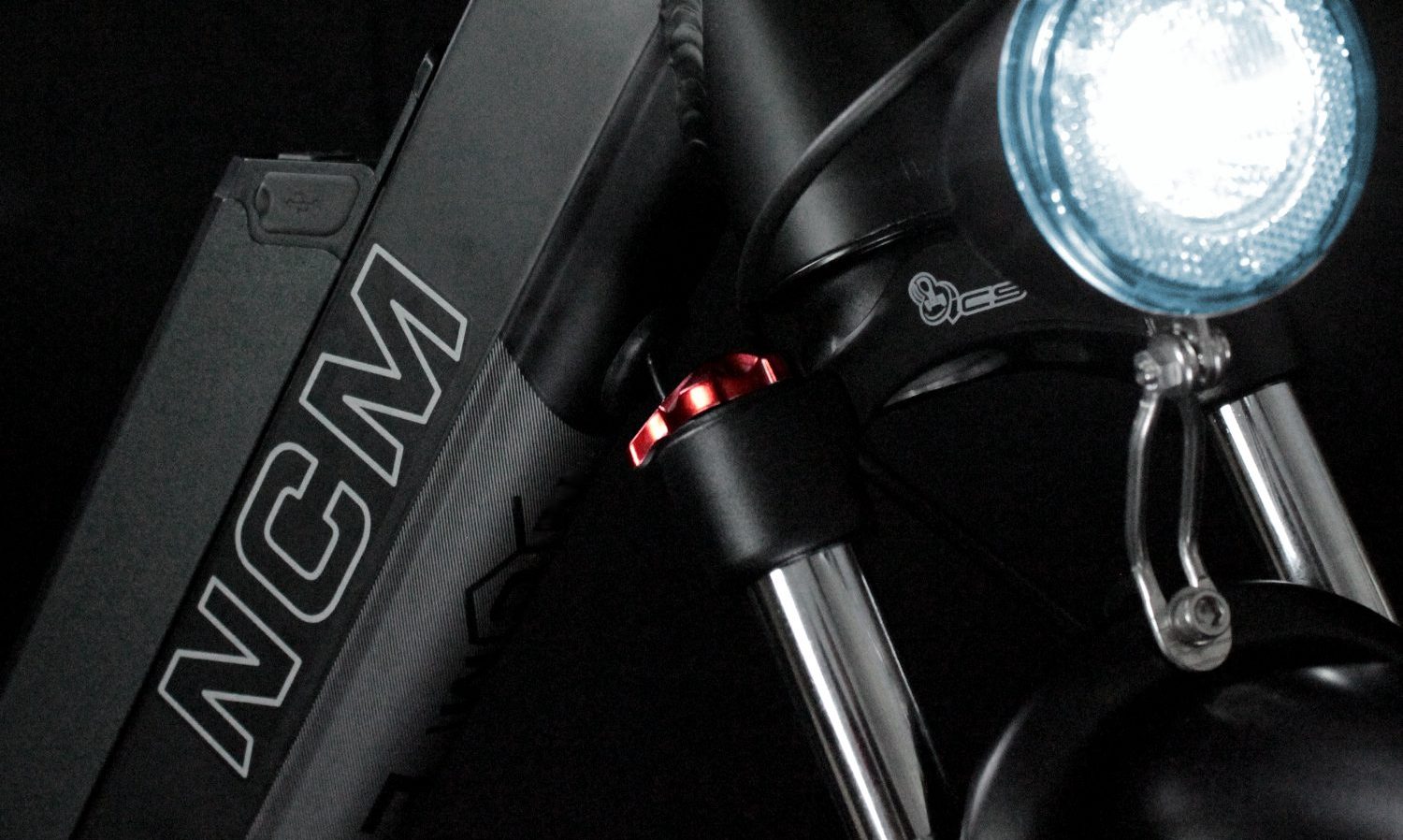

Front Light: Cateye, Front reflector

Rear Light: Cateye, Rear reflector

WEIGHT

Net Weight (with battery): 59.0 lbs

Battery Weight: 7.5 lbs

Max Load (driver+bike): 308.0 lbs

Warranty

• 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• 2 year warranty on the bike frame
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
• Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
