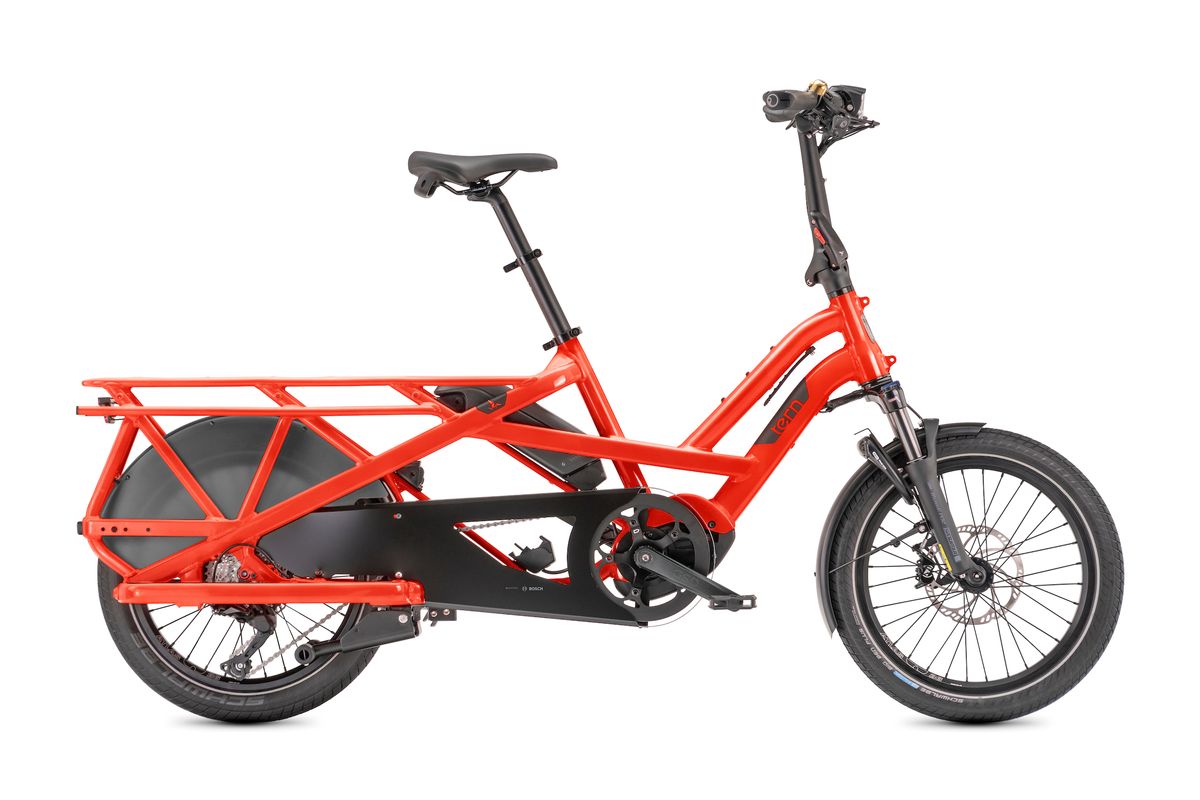

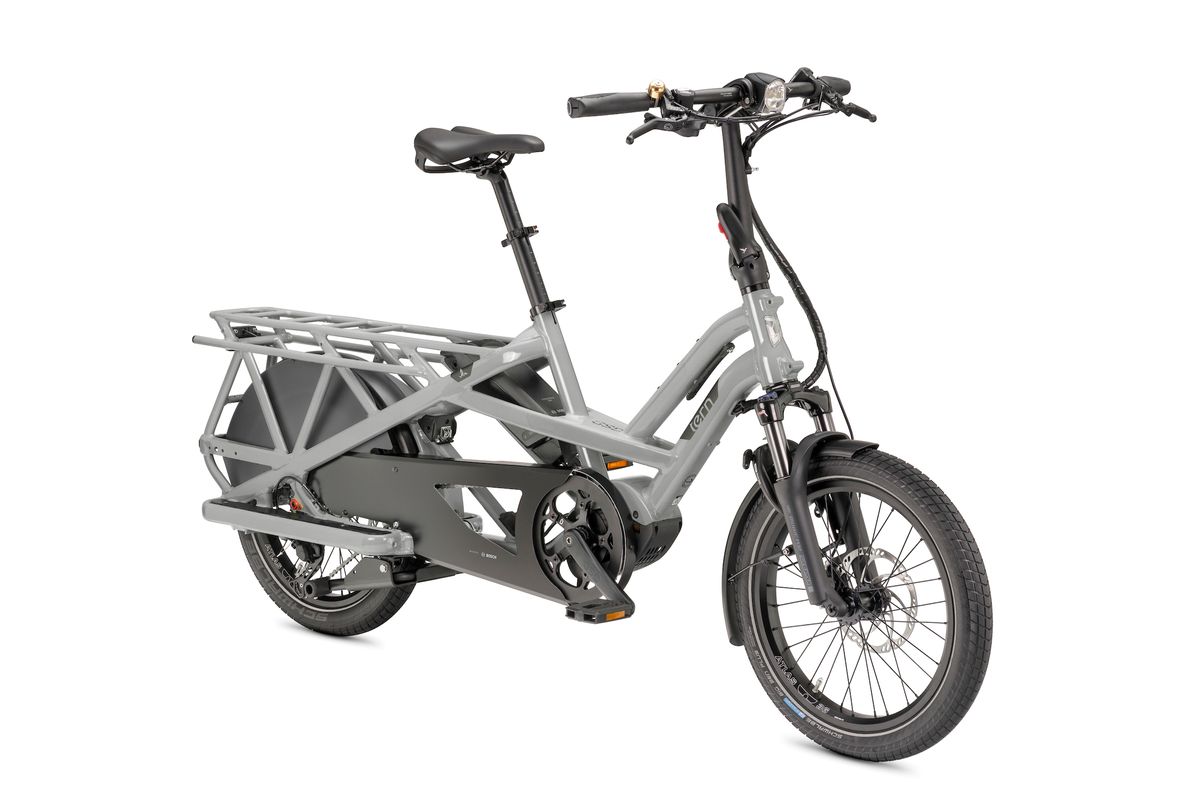

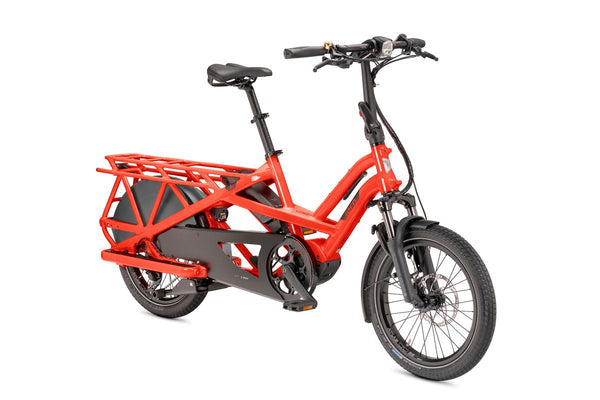

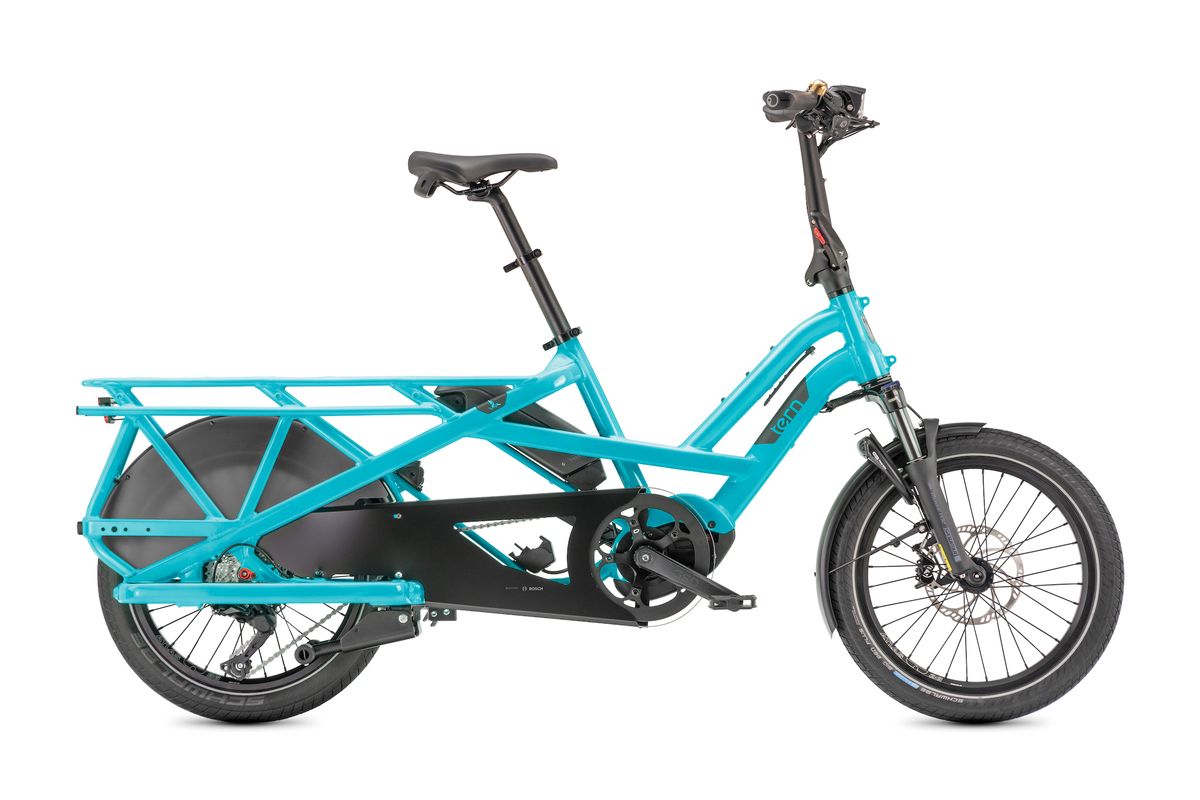

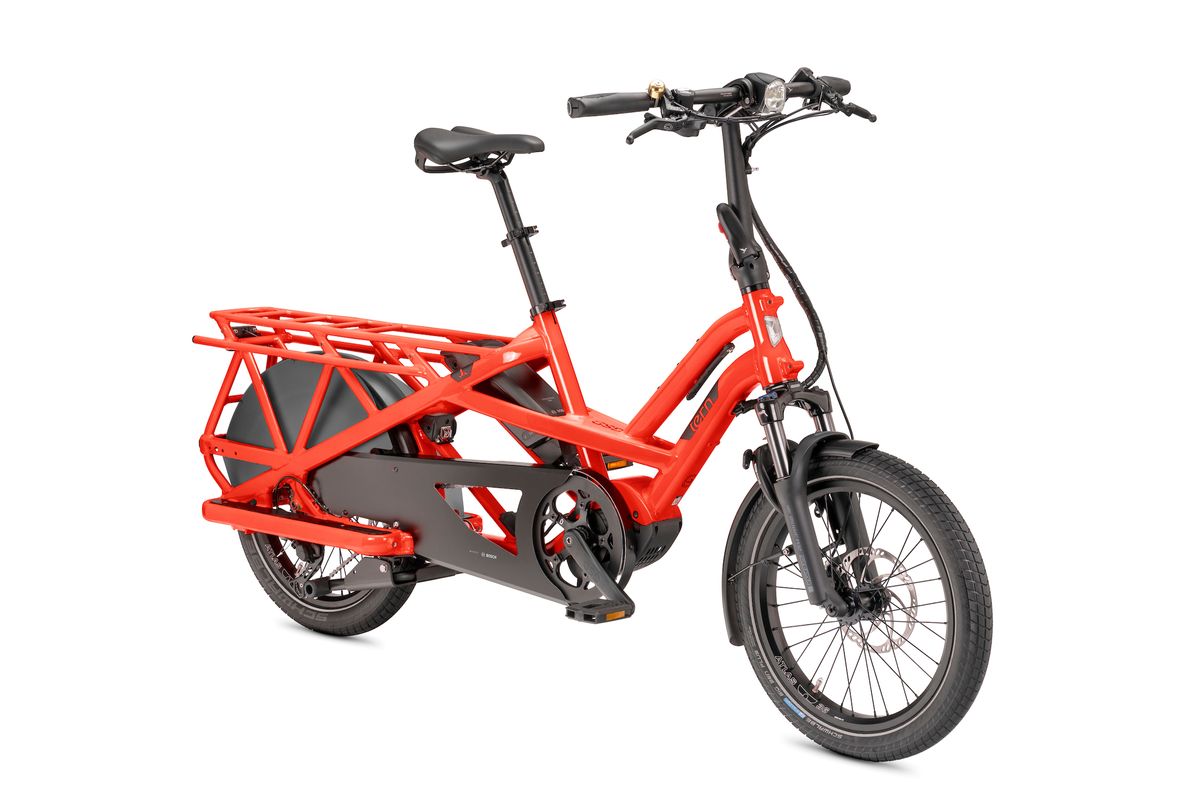

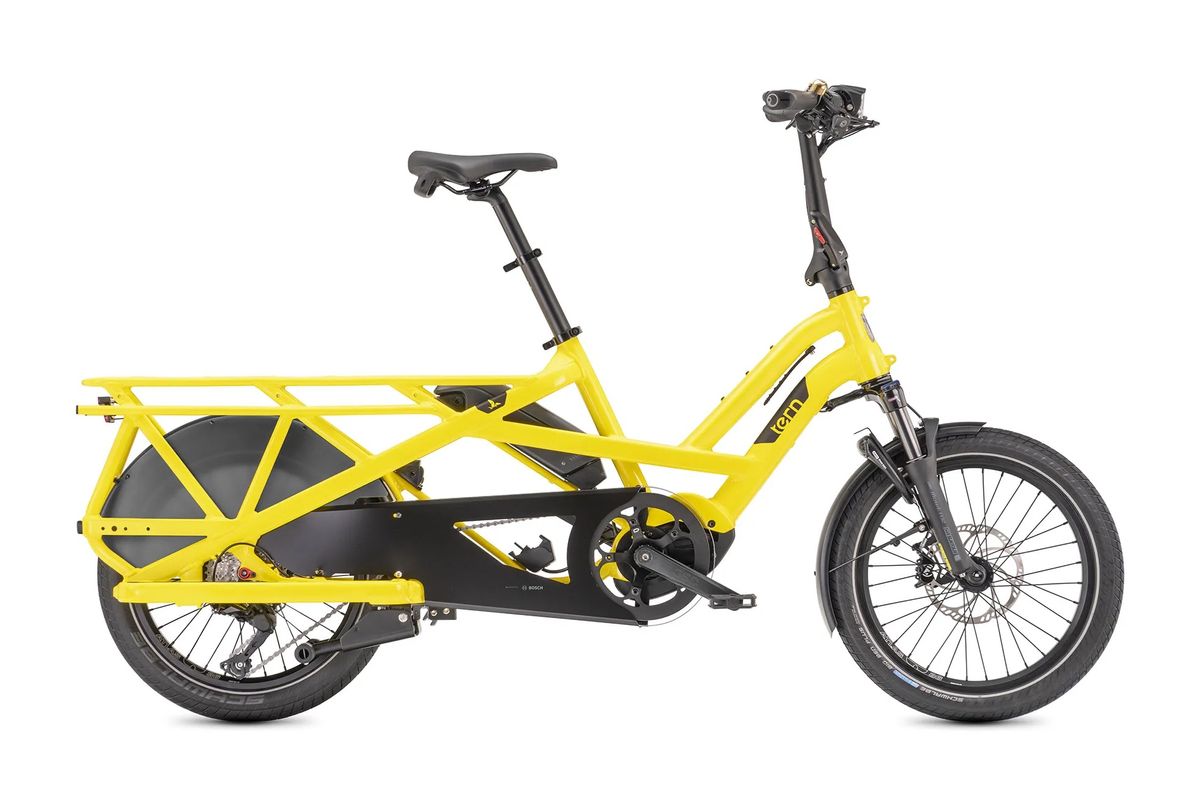

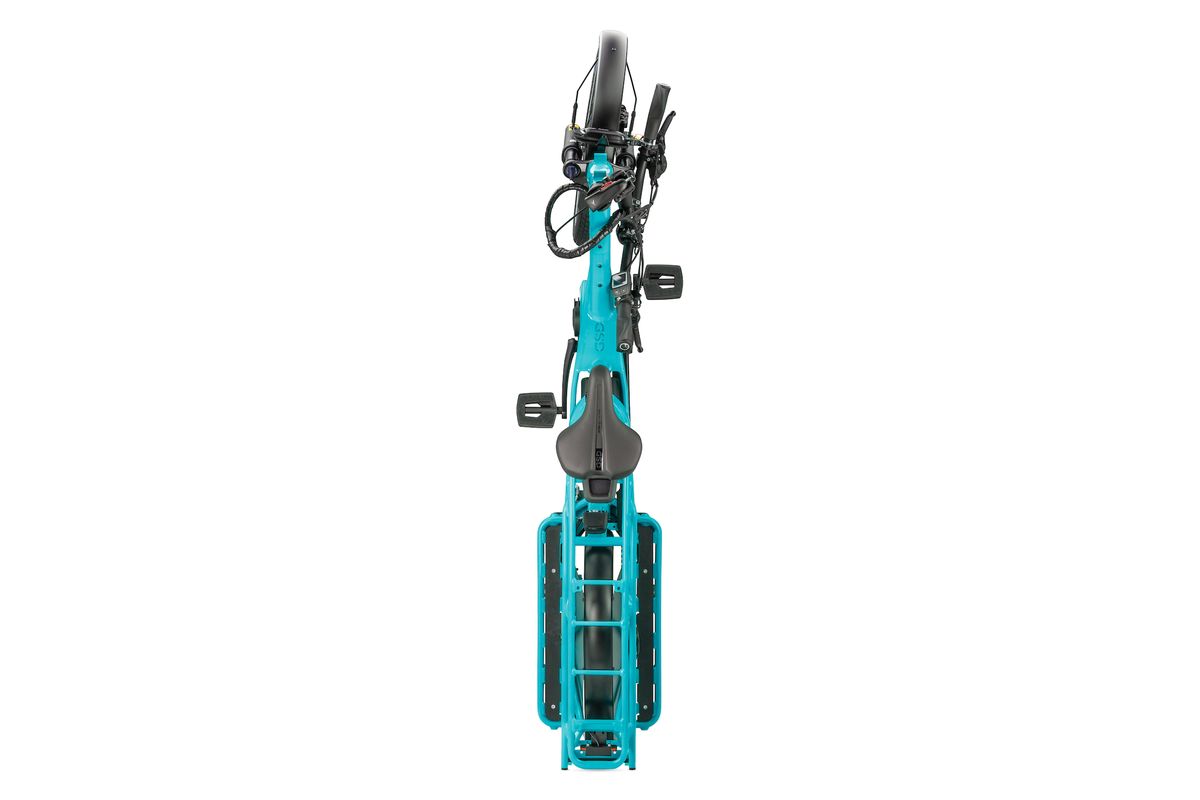

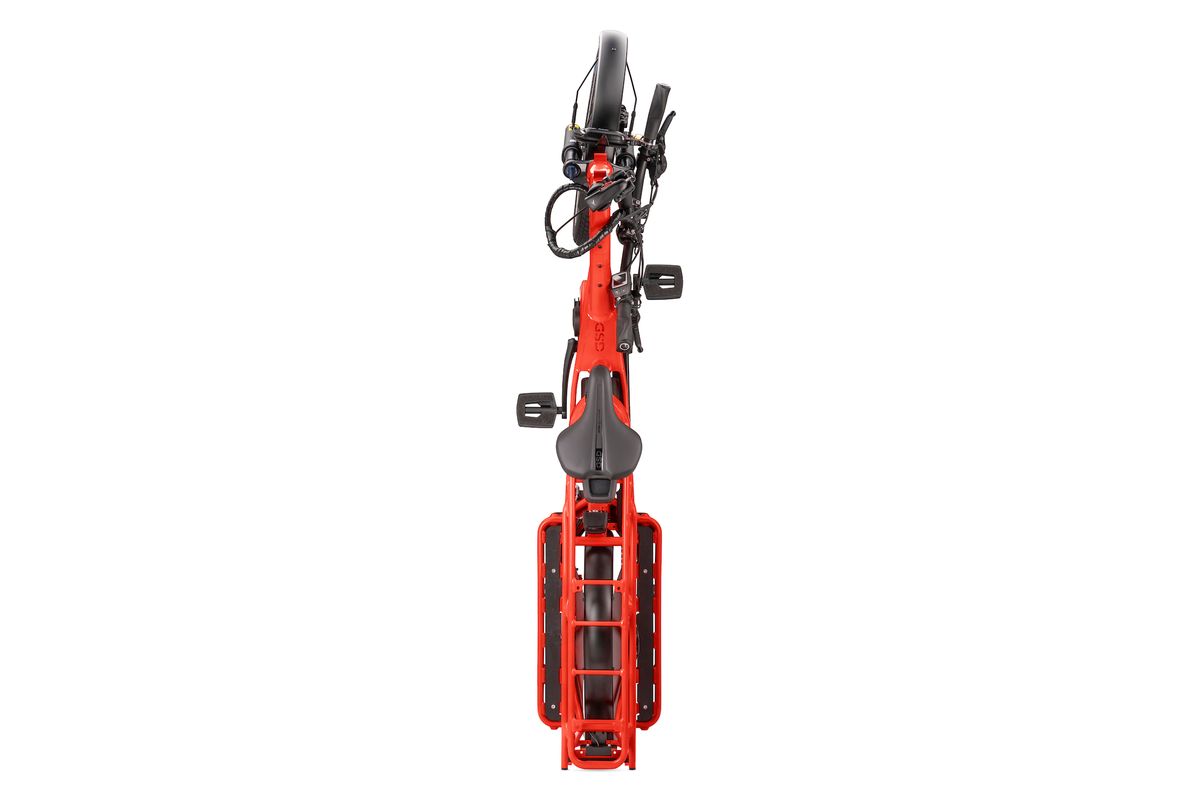

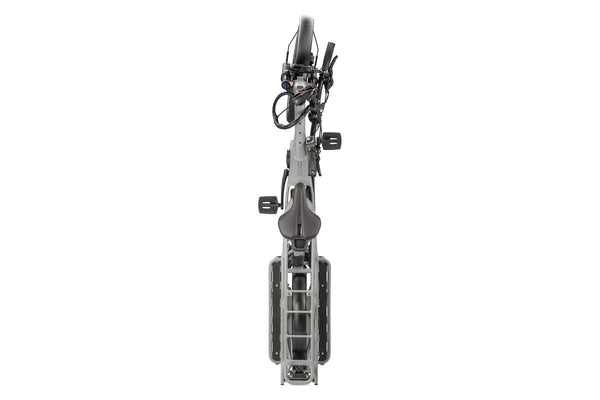

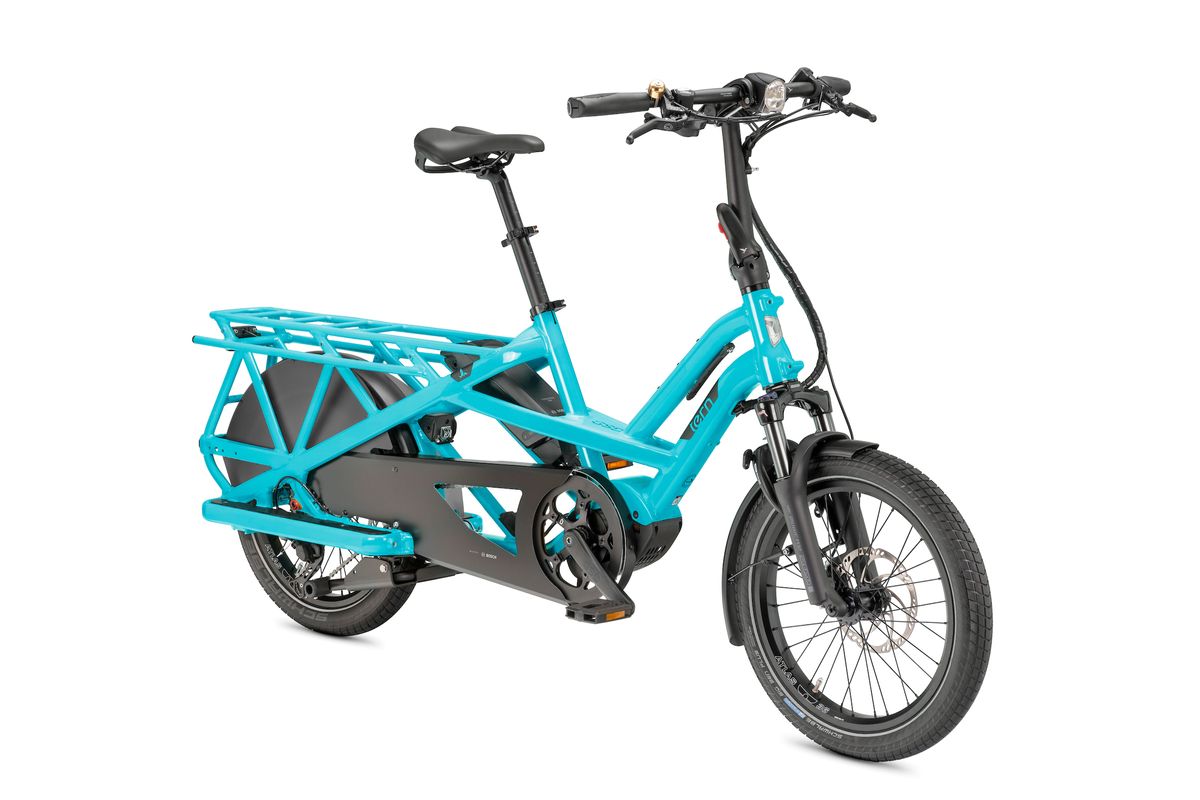

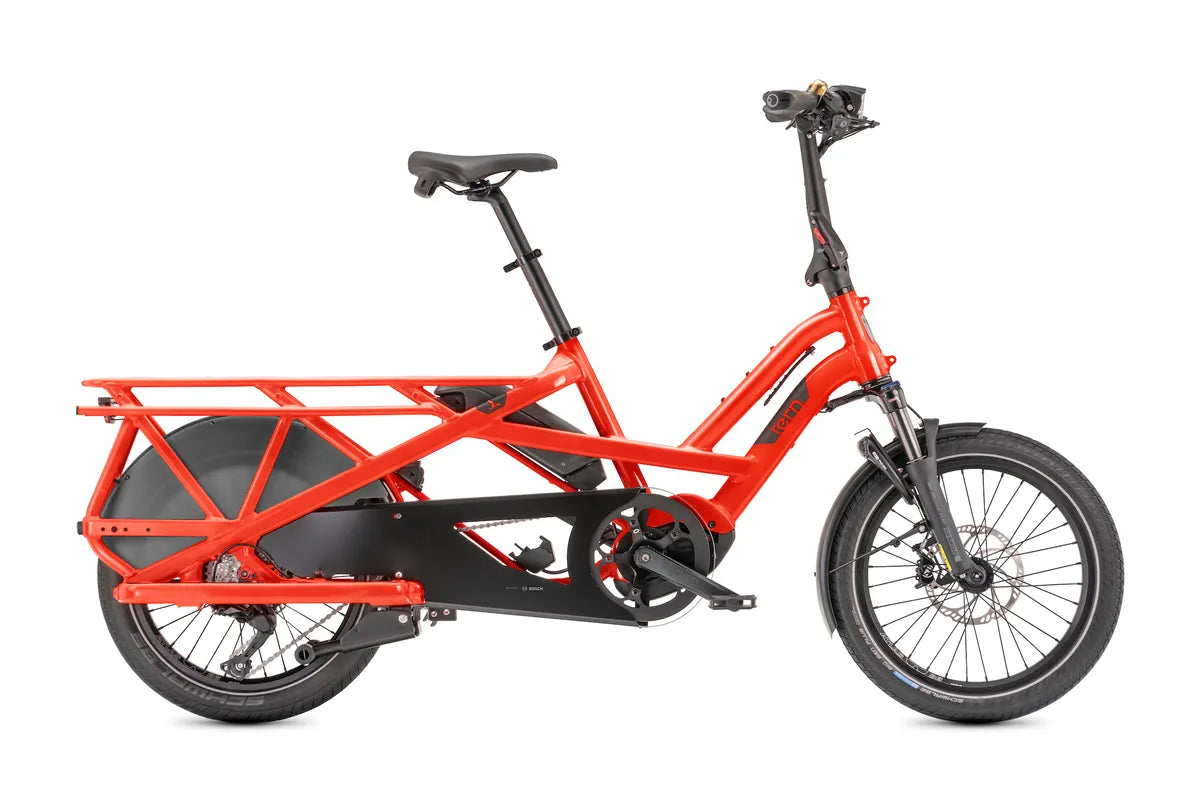

Tern GSD S10 Bosch Cargo Line 400w/h

SKU: BKTG110

Price: $8,990.00

Variant:

Product variants

Pickup currently unavailable at In-Store Inventory

In stock! Usually ships same day to main cities around NZ. Please note Bikes can take up to 2-5 days for delivery.

Quantity

STILL SMALL. EVEN MORE USEFUL.

STILL SMALL. EVEN MORE USEFUL

200 kg Maximum Gross Vehicle Weight
Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
Bosch dual-battery system (400/900 Wh) for a range of up to 195 km (extra battery sold separately by Bosch NZ)
Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
Adjustable cockpit comfortably fits riders 150 – 195 cm
Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
Heavy-duty frame-integrated rear rack and integrated lower decks
Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
Always-on RearStop™ Brake Light helps you safely signal stops
Integrated Abus® Wheel Lock, keyed-alike with the battery
Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability
Wide range of cargo- and passenger-carrying accessories
Fits two Thule® Yepp Maxi seats, no adapters needed

GENERAL INFO

SPEEDS	1 x 10
WEIGHT	33.58 kg
GEAR INCHES	2.08 - 7.91 m

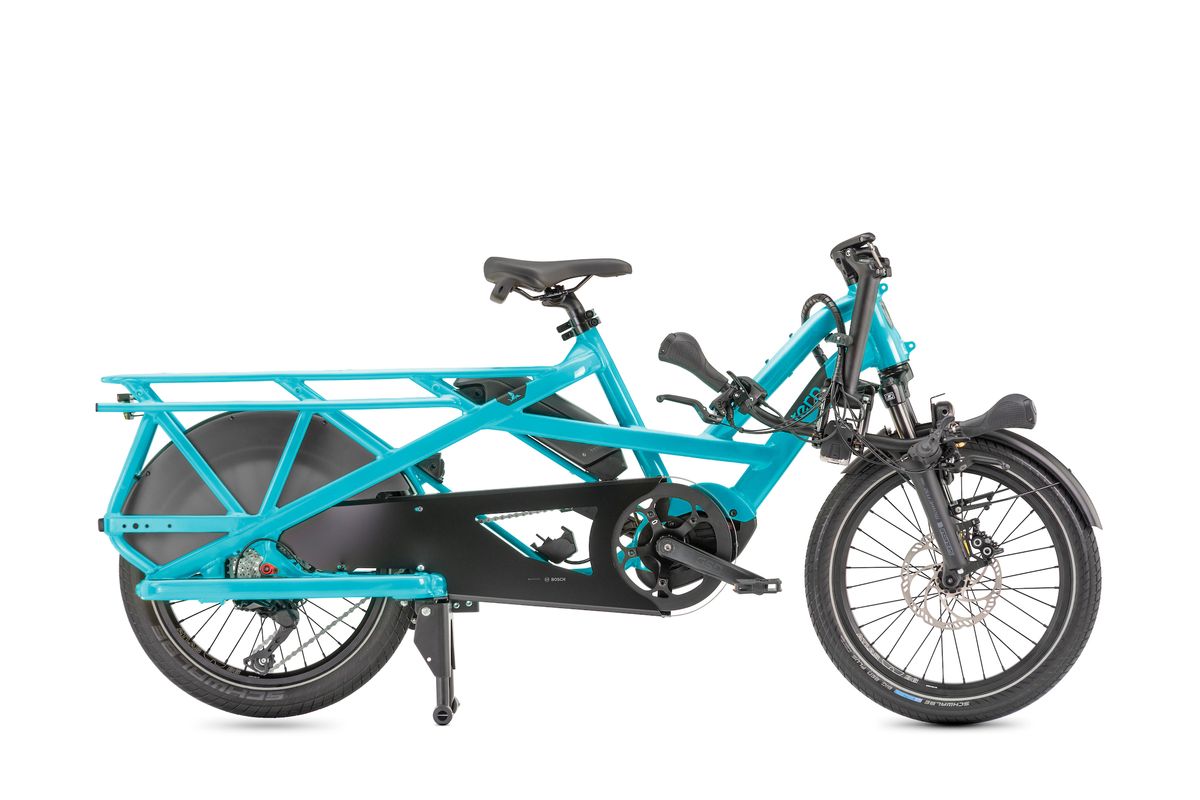

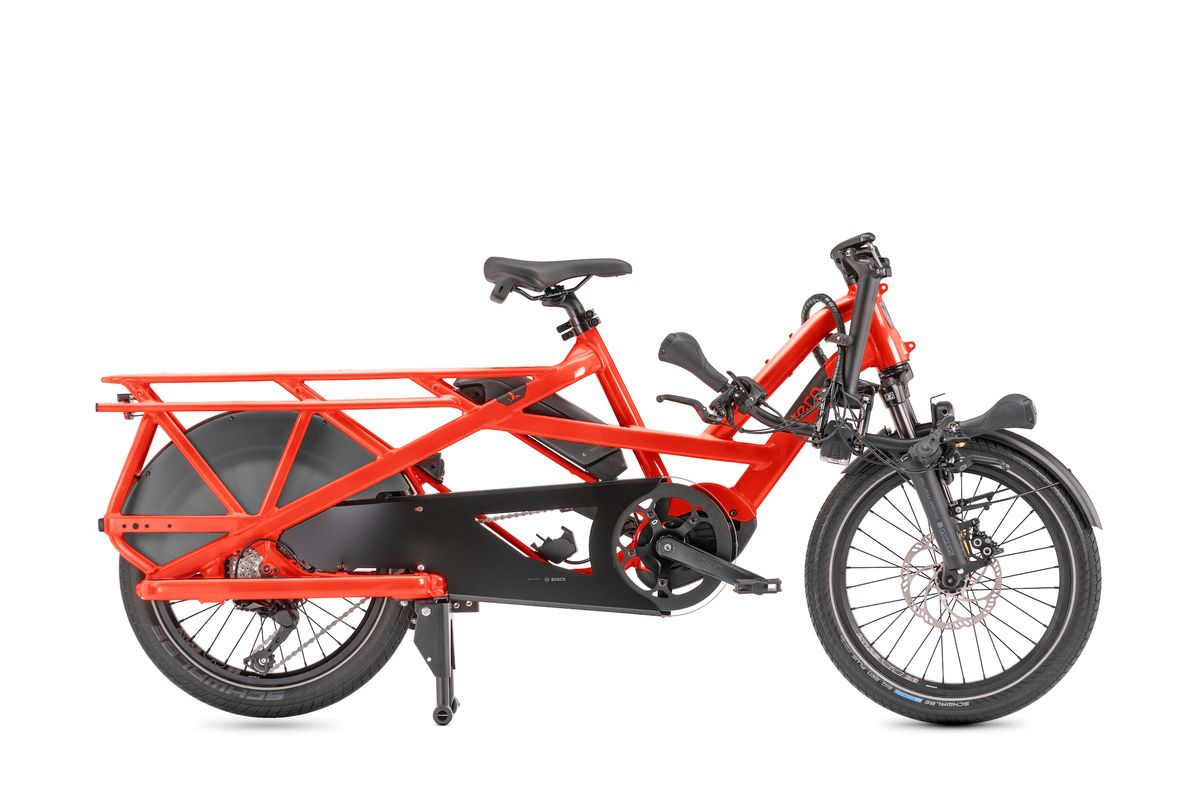

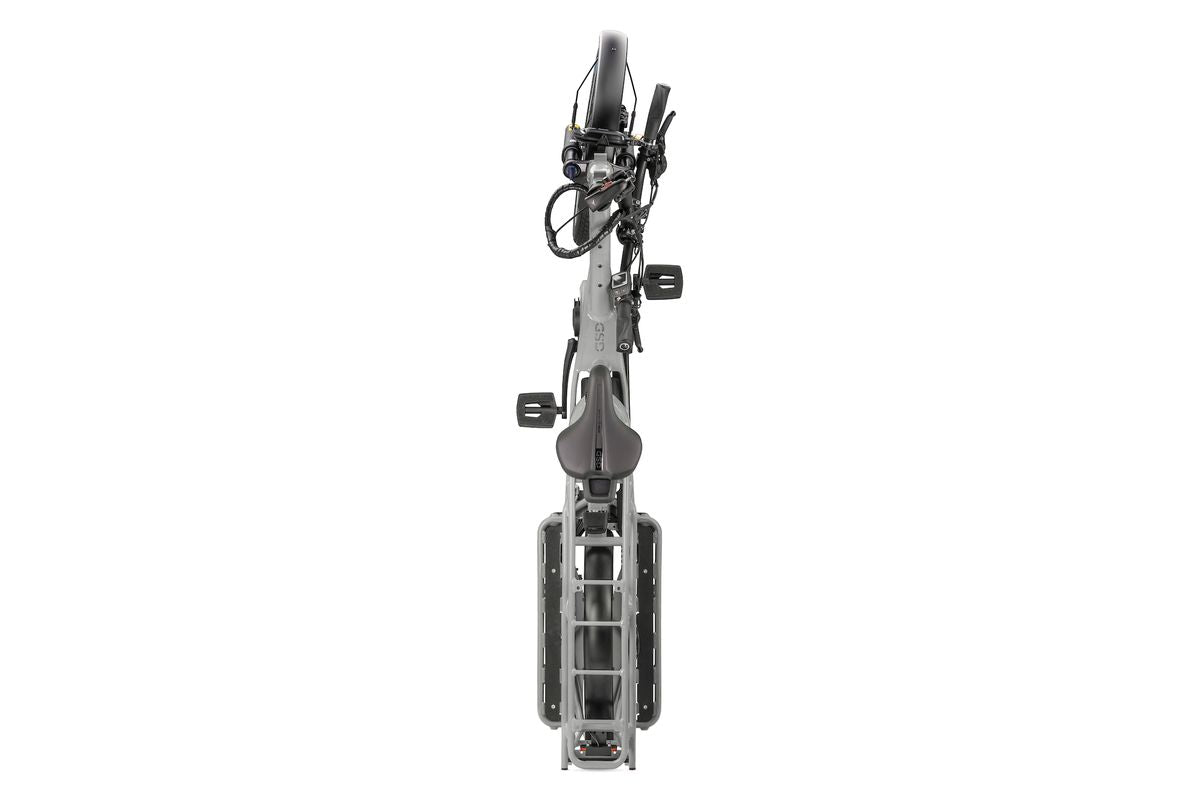

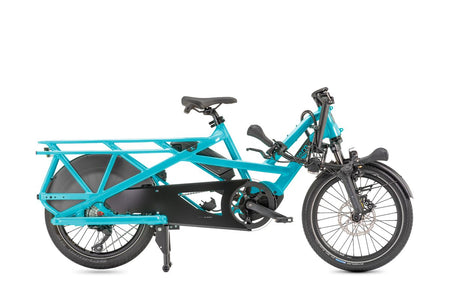

FOLDING SIZE	176 × 40.5 × 83 cm
FOLDING TIME	5 sec
FRAME SIZES	One size
DISTANCE (SEATPOST TO HANDLEBAR)	49 - 59 cm
DISTANCE: SADDLE TO PEDAL	69 - 105 cm
SUGGESTED RIDER HEIGHT	150 - 195 cm
MAX GROSS VEHICLE WEIGHT	200 kg
MAX RIDER WEIGHT	120 kg

FRAME

FRAME	Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
FORK	Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

COCKPIT

HANDLEPOST	Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM	Tern Andros, adjustable, forged construction, patented technology
HEADSET	Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
HANDLEBAR	Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE	Ergon
SADDLE	Tern GSD by Velo, with rear handle
SEATPOST	Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP	Tern Collar, 6061-AL, 2pc

BRAKES

FRONT BRAKE	Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
REAR BRAKE	Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
BRAKE LEVERS	Magura MT5 e-stop, hydraulic, with brake sensor

WHEELS

FRONT HUB	Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
REAR HUB	Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
SPOKES AND NIPPLES	Stainless steel, 13G
RIMS	Tern Atlas, ultra wide 36 mm, dual reinforced joint
TIRES	F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

TRANSMISSION

SHIFTER(S)	Shimano Deore, 1 x 10 spd
REAR DERAILLEUR	Shimano Deore Shadow+
CRANKSET	Tern GSD custom, forged 6061-AL DH crankarm
CASSETTE/FREEWHEEL	Shimano 11-36T, 10 spd
BOTTOM BRACKET	Motor integrated
CHAIN	10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS	Urban with non-slip surface, sealed bearings
SHIFTER CABLE & HOUSING	Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

MOTOR	Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 32km/h
BATTERY	Bosch Dual Battery system, 400 Wh/900 Wh (extra 500Wh battery not included)
DISPLAY	Bosch Purion, 4 mode selectable, walk assist
RANGE	400 Wh: 42-85 km; 900 Wh: 97-195 km
CHARGER	240V, 4A (AU/NZ)

BELLS & WHISTLES

BELL	Pitch Plus, brass
CHAINGUARD	Tern Custom, full chain cover
KICKSTAND	Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET	Combo Mount
FRONT LIGHT	Tern Valo Direct, 190 lumens
REAR LIGHT	RearStop Brake Light, Always on brake light
FENDERS	Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S)	Frame integrated, heavy duty design; Max load weight: 100 kg
ACCESSORY	ABUS, keyed-alike with Bosch battery

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
