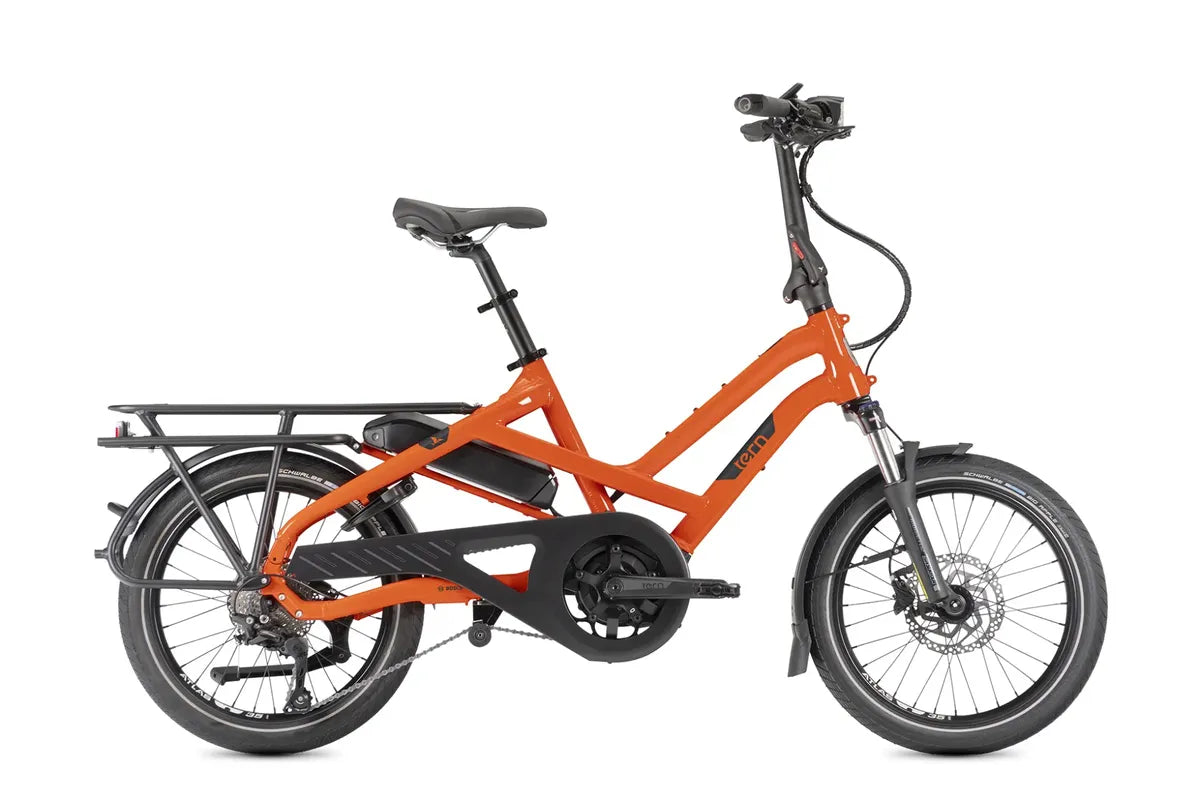

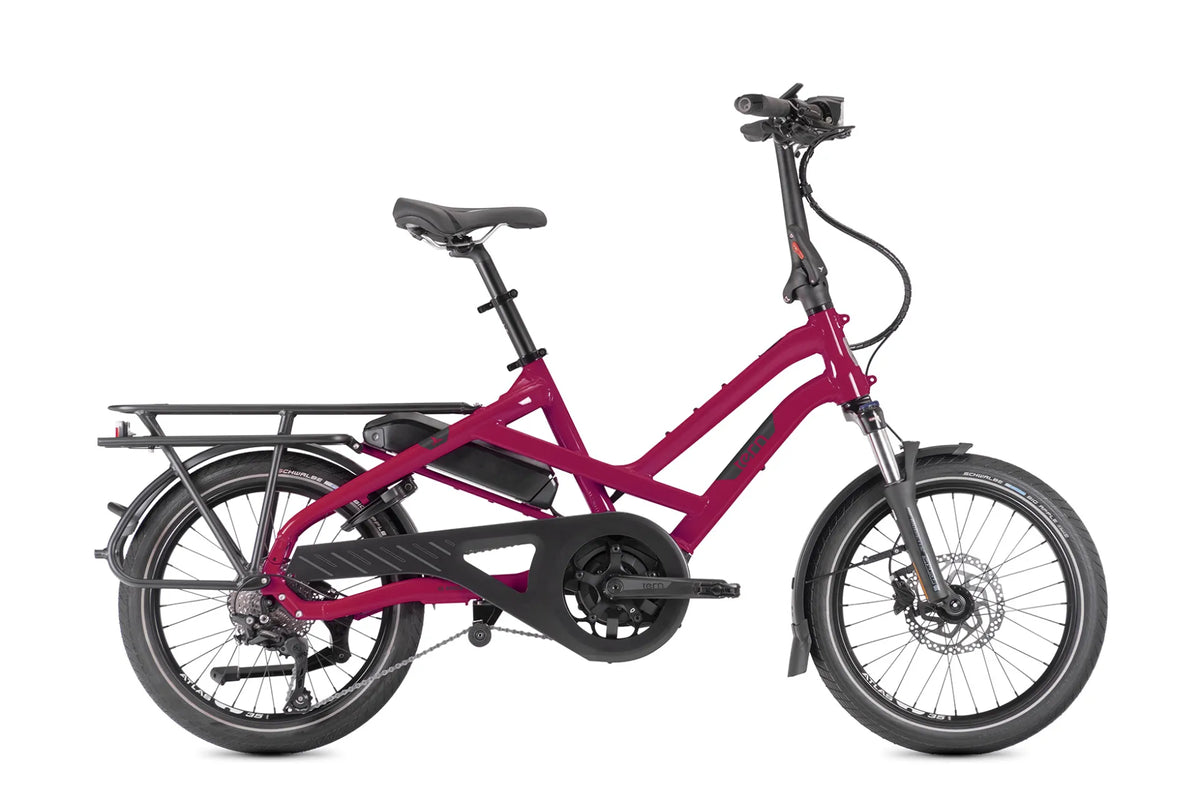

Tern HSD G2 P10 Bosch Performance 400wh

SKU: BKTH240

Price: $8,490.00

Option 1 Name:

Product variants

Pickup currently unavailable at In-Store Inventory

This item is temporary out of stock

What makes it a P10?

Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%

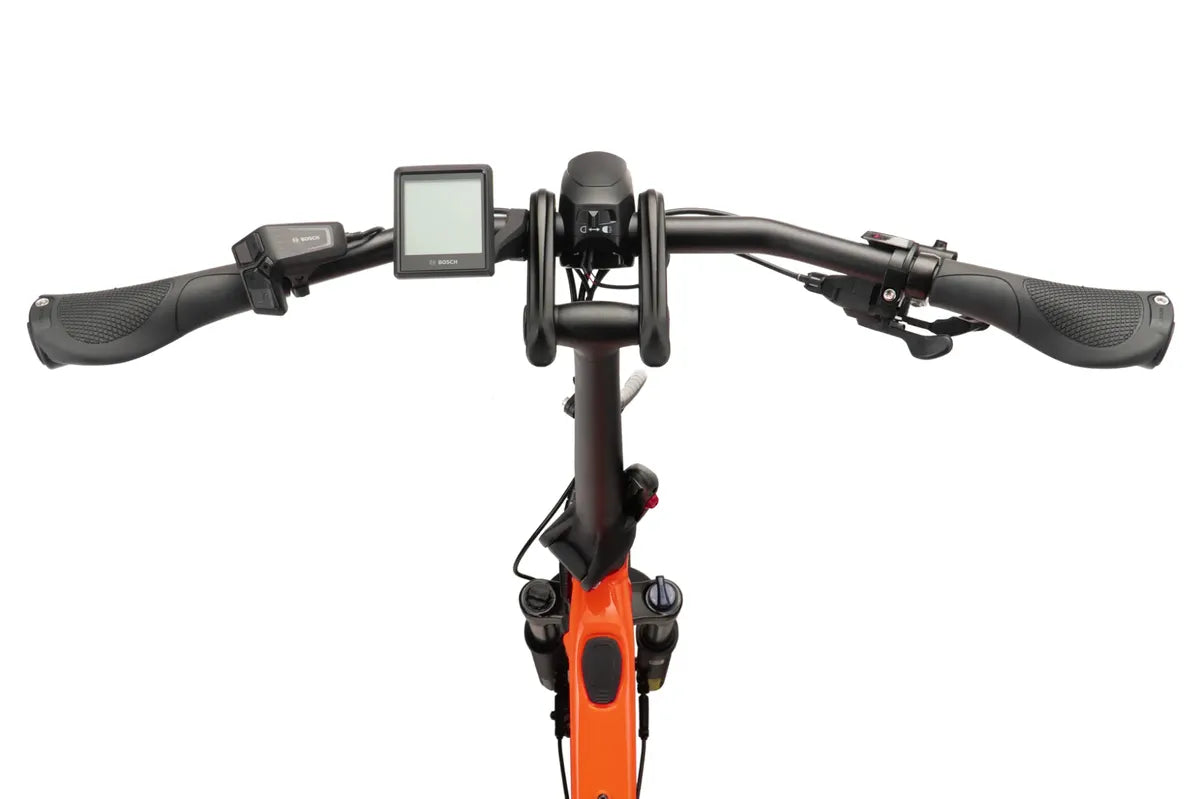

Detachable and easy-to-understand Intuvia 100 display
1x10-speed Shimano Deore groupset with trigger shifter

HSD Highlights

Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
Bosch PowerPack 545 battery provides long range of up to 121 km
Cargo and passenger-ready: large rear rack capacity of 80 kg means you can carry one infant to a medium-sized adult passenger, or lots of cargo
Fits riders 150 - 195 cm with an easily-adjustable cockpit
Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg Maximum Gross Vehicle Weight

GENERAL INFO

SPEEDS	1 x 10
WEIGHT	27.6 kg
GEAR INCHES	2.36 - 7.72 m

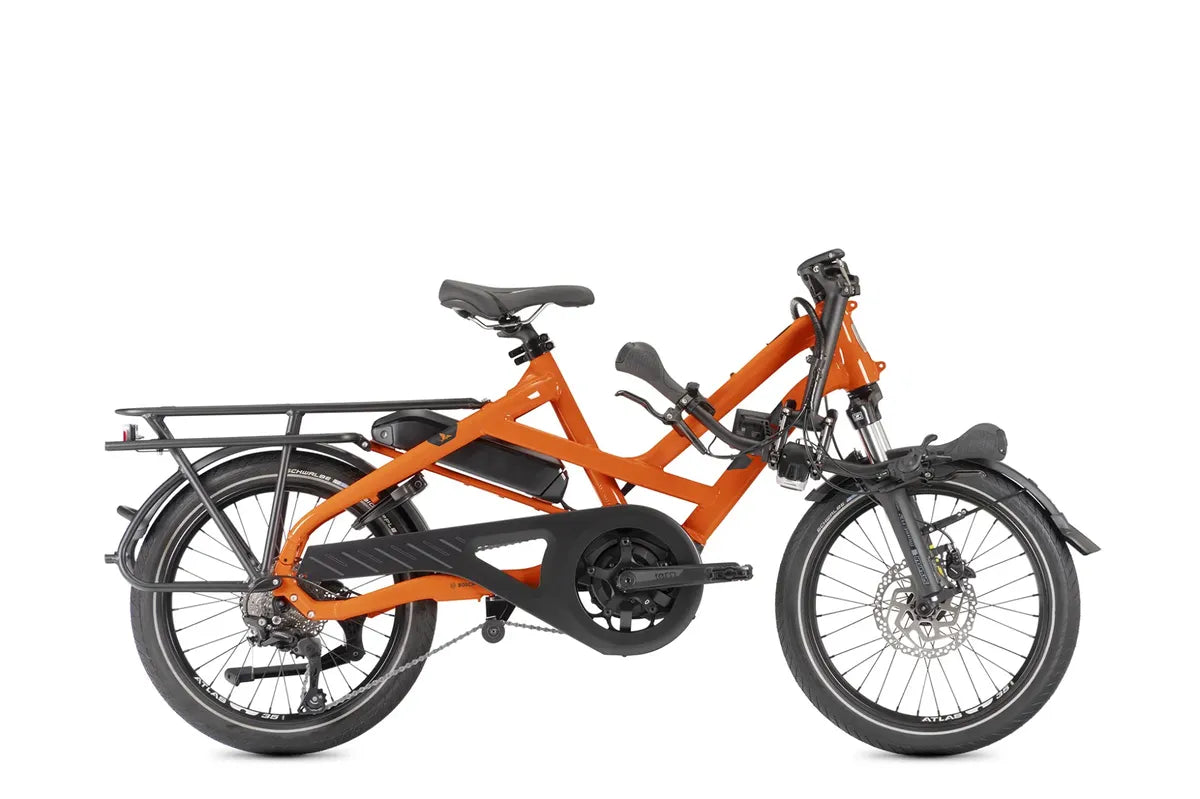

FOLDING SIZE	165 × 39.5 × 87 cm
FOLDING TIME	5 sec
FRAME SIZES	One size
DISTANCE (SEATPOST TO HANDLEBAR)	54.5 - 62.5 cm
DISTANCE (SADDLE TO PEDAL)	70 - 102.5 cm
SUGGESTED RIDER HEIGHT	150 - 195 cm
MAX GROSS VEHICLE WEIGHT	180 kg
MAX RIDER WEIGHT	120 kg

FRAME

FRAME	Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
FORK	Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

COCKPIT

HANDLEPOST	Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM	Tern Andros, adjustable, forged construction, patented technology
HEADSET	Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
HANDLEBAR	Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE	Ergon
SADDLE	Tern Upright by Velo
SEATPOST	Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP	Tern Collar

BRAKES

FRONT BRAKE	Tektro, hydraulic disc, 180 mm rotor
REAR BRAKE	Tektro, hydraulic disc, 160 mm rotor
BRAKE LEVERS	Tektro, hydraulic disc
BRAKE CABLE & HOUSING	Tektro, hydraulic disc

WHEELS

FRONT WHEEL	Tern Atlas H, cargo wheel
REAR WHEEL	Tern Atlas H, cargo wheel
FRONT HUB	Novatec, Thru-axle, sealed bearings
REAR HUB	Novatec, sealed cartridge bearing, disc
SPOKES AND NIPPLES	Stainless steel
RIMS	Tern Atlas H, wide 35 mm
TIRES	Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S)	Shimano Deore, 1 x 10 spd, trigger
REAR DERAILLEUR	Shimano Deore Shadow+
CRANKSET	Tern HSD custom
CASSETTE/FREEWHEEL	Shimano 11-36T, 10 spd
BOTTOM BRACKET	Motor integrated
CHAIN	KMC 10 spd, for eBike, EPT corrosion resistant coating
PEDALS	Urban with non-slip surface
SHIFTER CABLE & HOUSING	Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

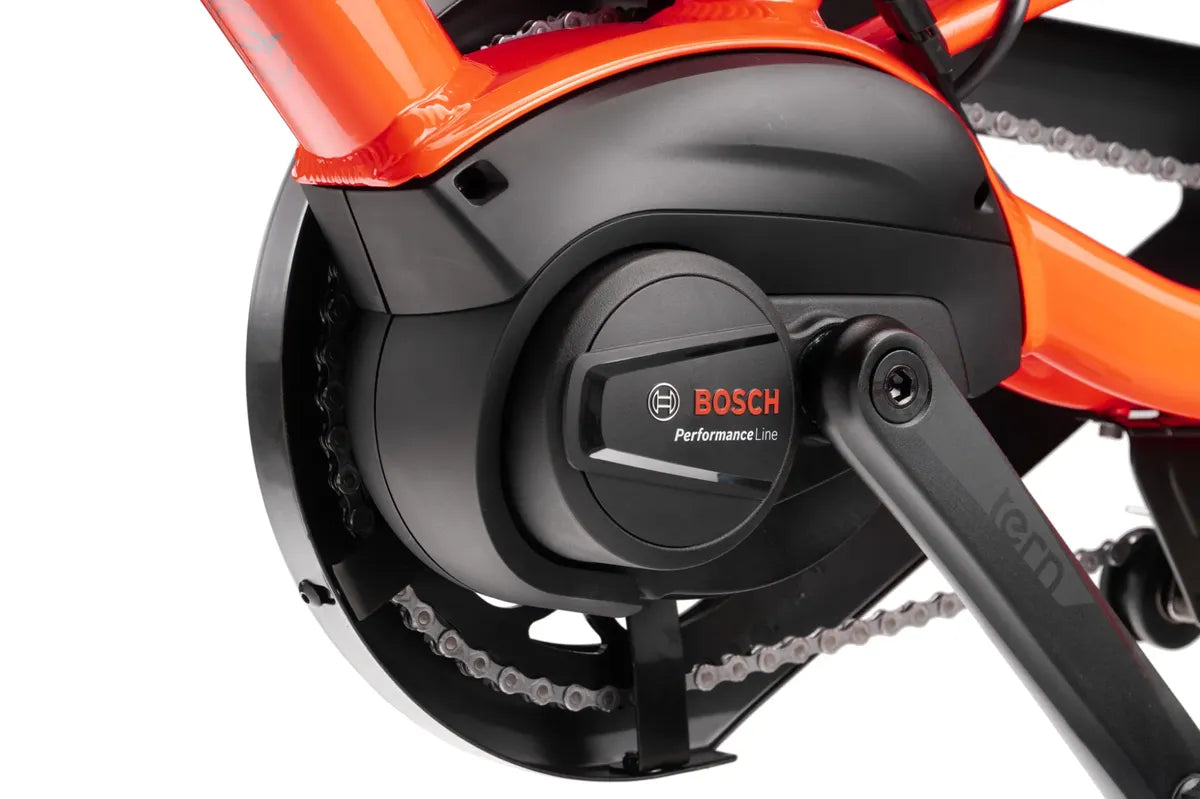

MOTOR	Bosch Performance, 340% Assist, 75 Nm Torque, max speed 32km/h

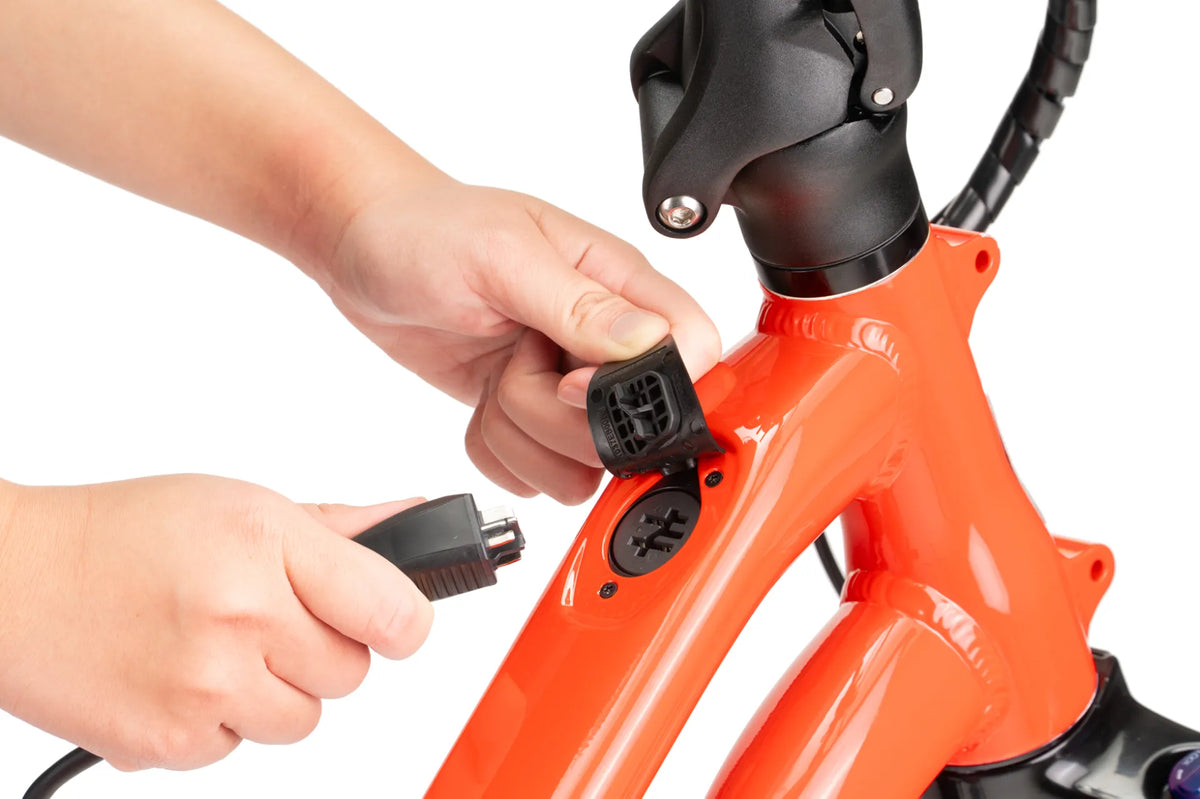

BATTERY	Bosch PowerPack 545

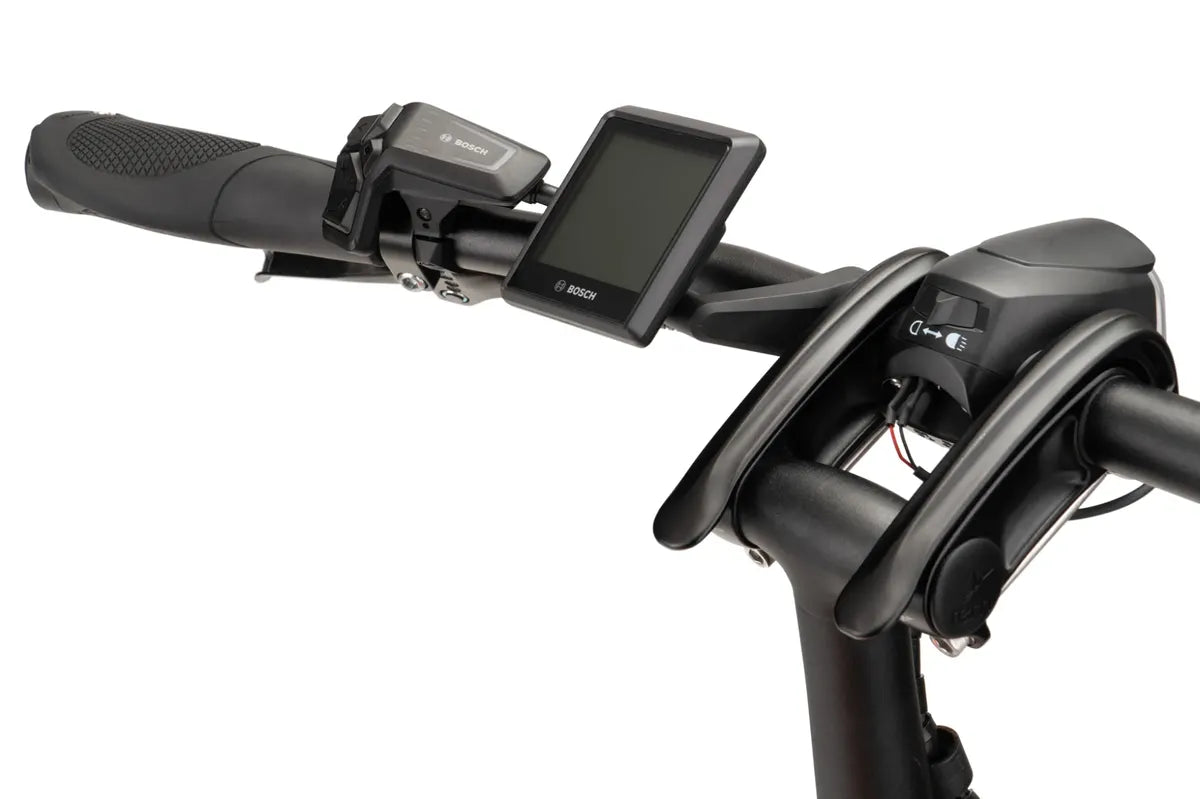

DISPLAY	Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
LOCK & ALARM	Optional
RANGE	545 Wh: 51-121 km
CHARGER	240V, 4A (AU/NZ)

BELLS & WHISTLES

BELL	Pitch Plus, brass

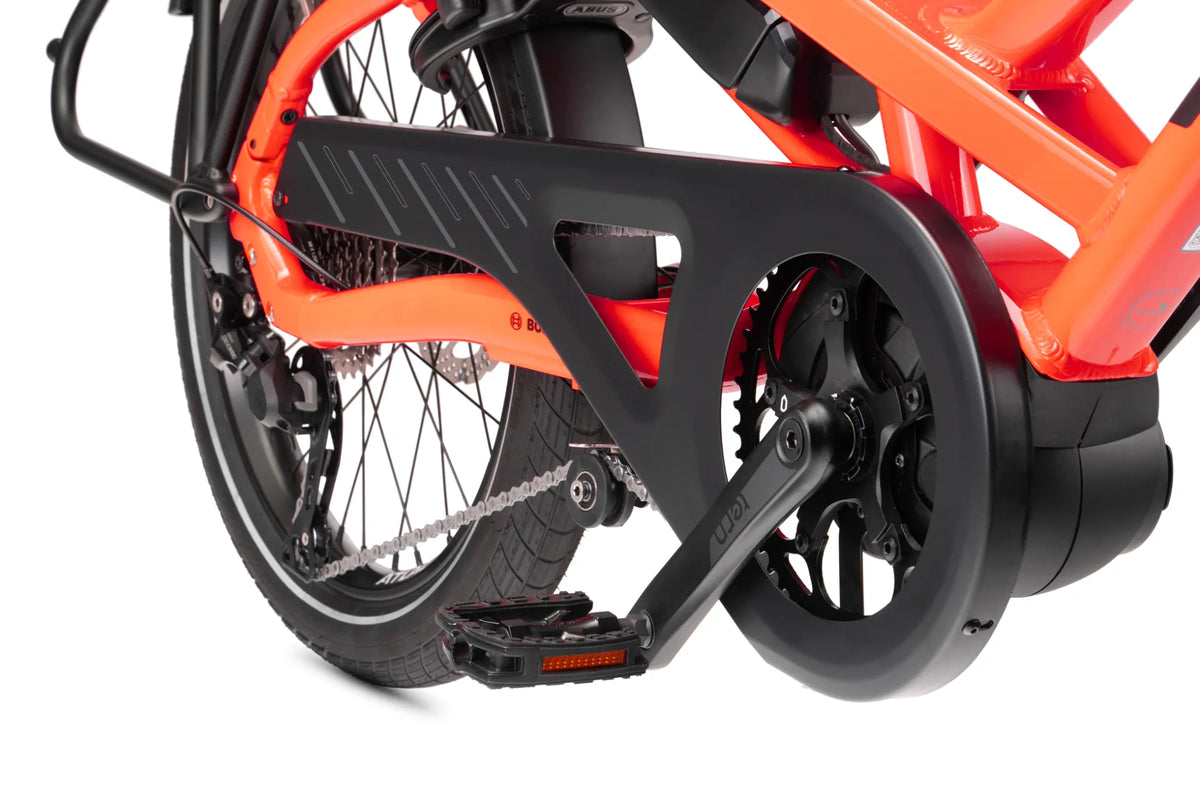

CHAINGUARD	Tern Custom, full chain cover
KICKSTAND	Ursus, rear mount
LUGGAGE SOCKET	Combo Mount

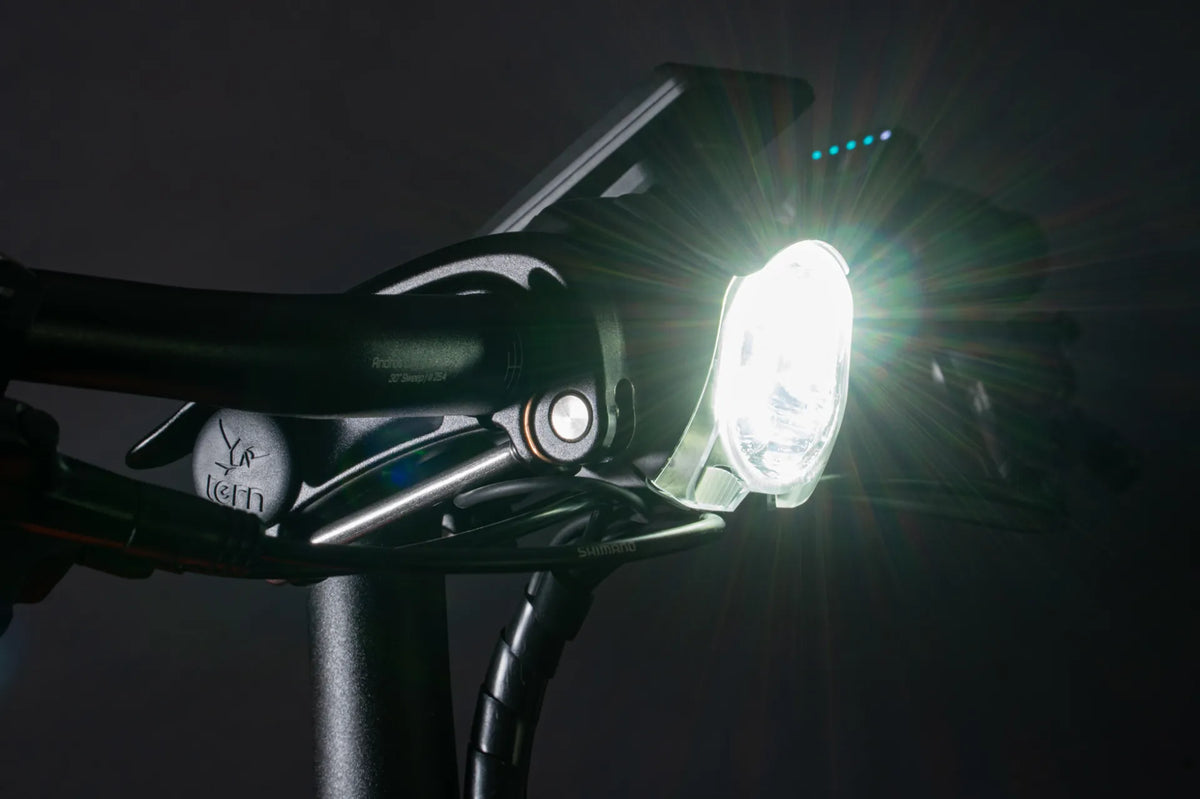

FRONT LIGHT	Tern Valo Direct, 190 lumens
REAR LIGHT	Herrmans H-Trace, for eBike
FENDERS	SKS, stainless hardware
RACK(S)	Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity

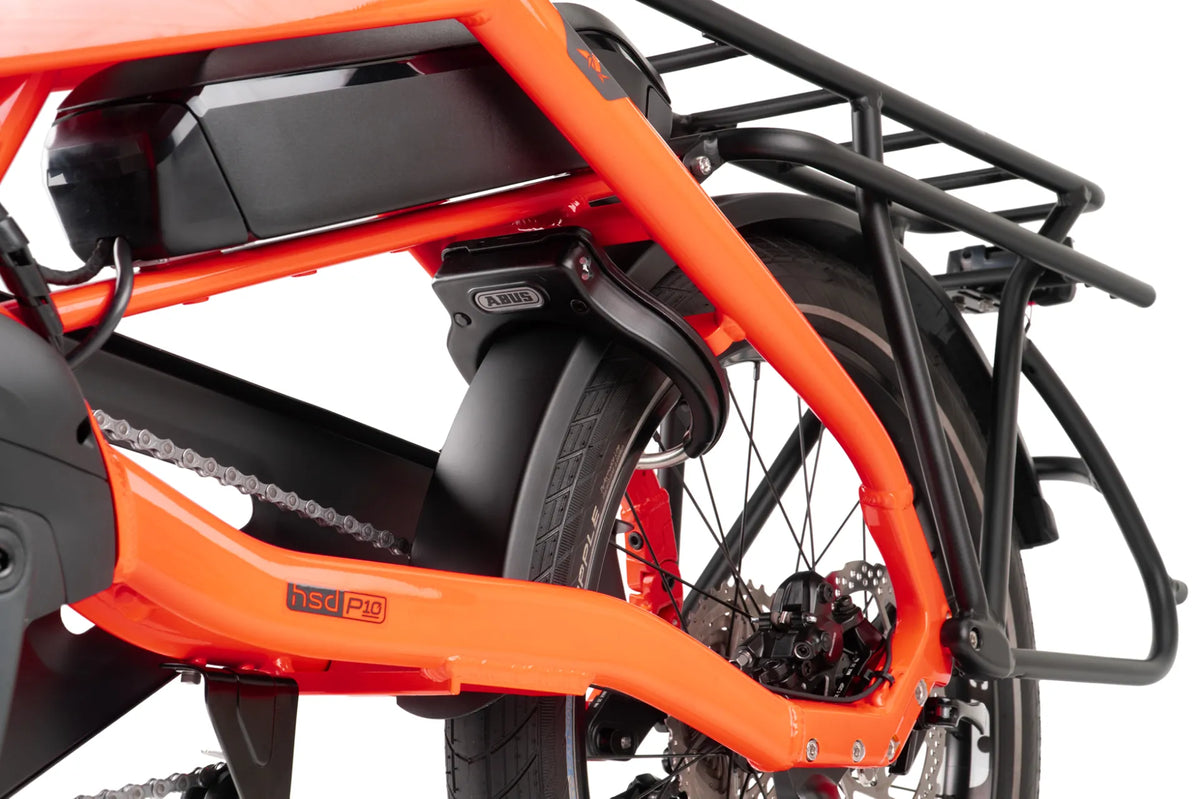

ACCESSORY	ABUS, keyed-alike with Bosch battery

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
