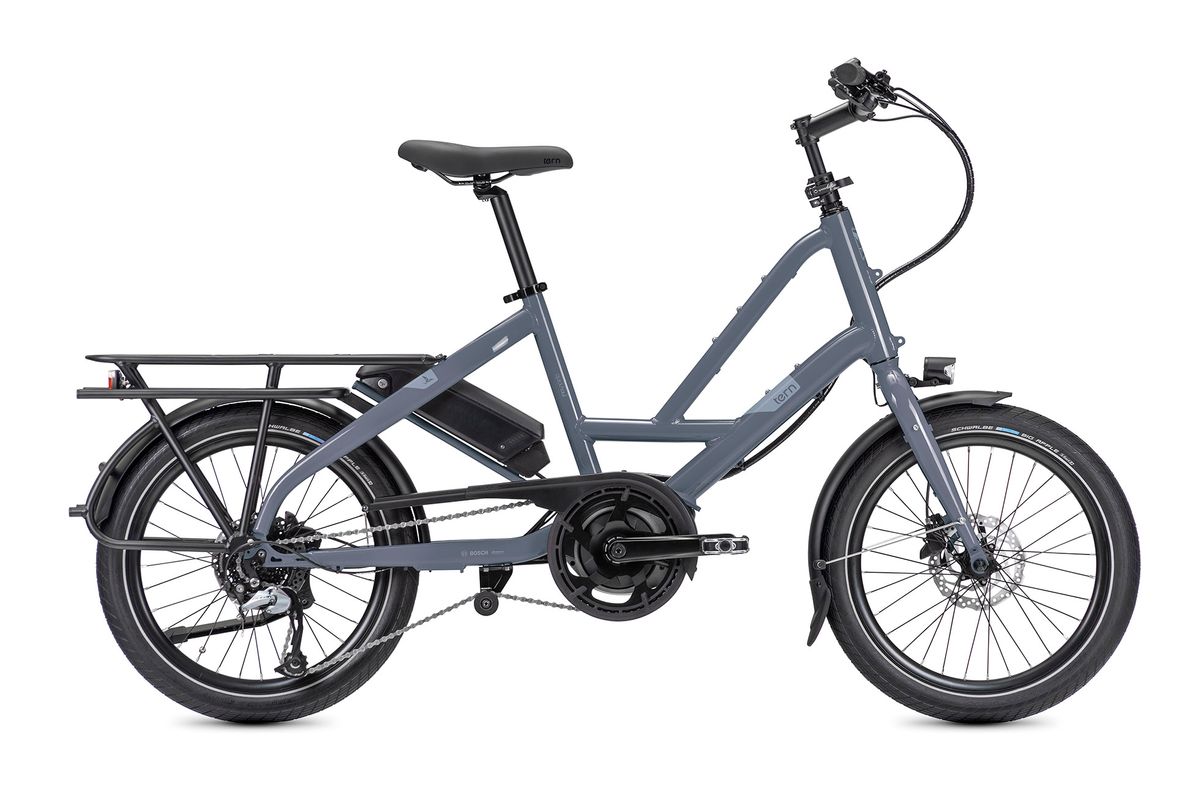

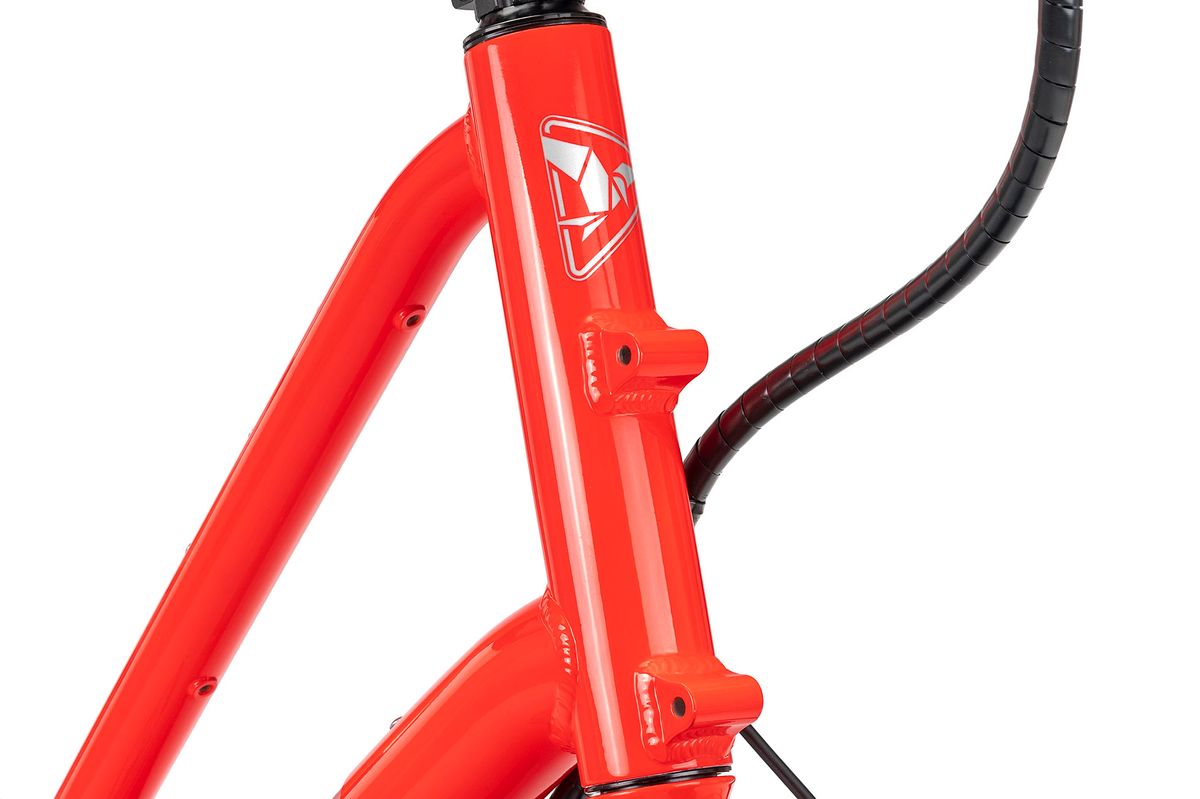

Tern Quick Haul D8 Bosch Active Line 32kph

Click image to open expanded view

Tern Quick Haul D8 Bosch Active Line 32kph

SKU: BKTQ332

Price: $4,999.00

Variant:

Product variants

Pickup currently unavailable at In-Store Inventory

In stock! Usually ships same day to main cities around NZ. Please note Bikes can take up to 2-5 days for delivery.

Quantity

SIMPLY CAPABLE

What Makes it a D8?

Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
Fits riders 160 - 195 cm, and also riders 145 - 180 cm when equipped with a shorter, 350 mm seatpost
Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

SPECIFICATIONS

GENERAL INFO

SPEEDS	1 x 8
WEIGHT	22.8 kg
GEAR INCHES	2.45 - 7.57 m
FRAME SIZES	One size
DISTANCE (SEATPOST TO HANDLEBAR)	60 - 64 cm
DISTANCE (SADDLE TO PEDAL)	68 - 110 cm
SUGGESTED RIDER HEIGHT	160 - 195 cm
MAX GROSS VEHICLE WEIGHT	150 kg
MAX RIDER WEIGHT	120 kg

FRAME

FRAME	Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
FORK	Cargo, steel, EFBE approved: 150 kg

COCKPIT

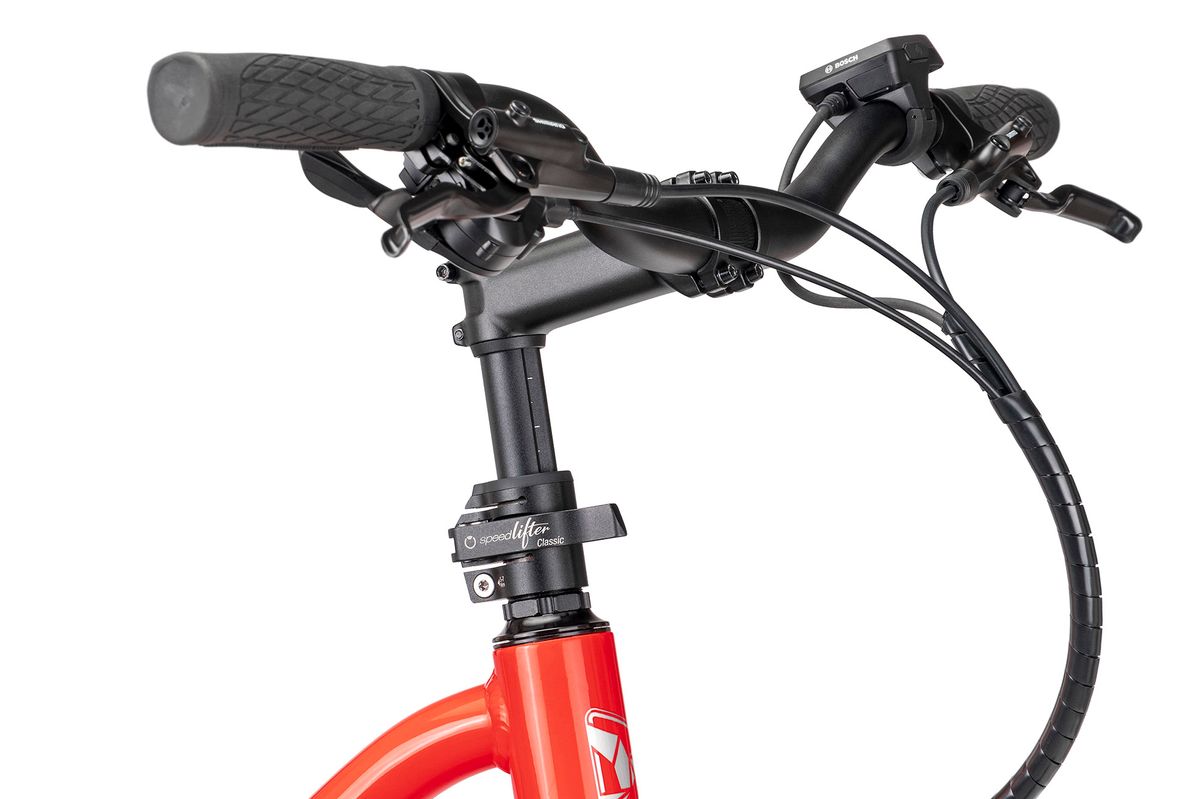

STEM	Speedlifter, 150 mm extension, 3D Forged stem, 31.8
HEADSET	TH, cartridge bearings

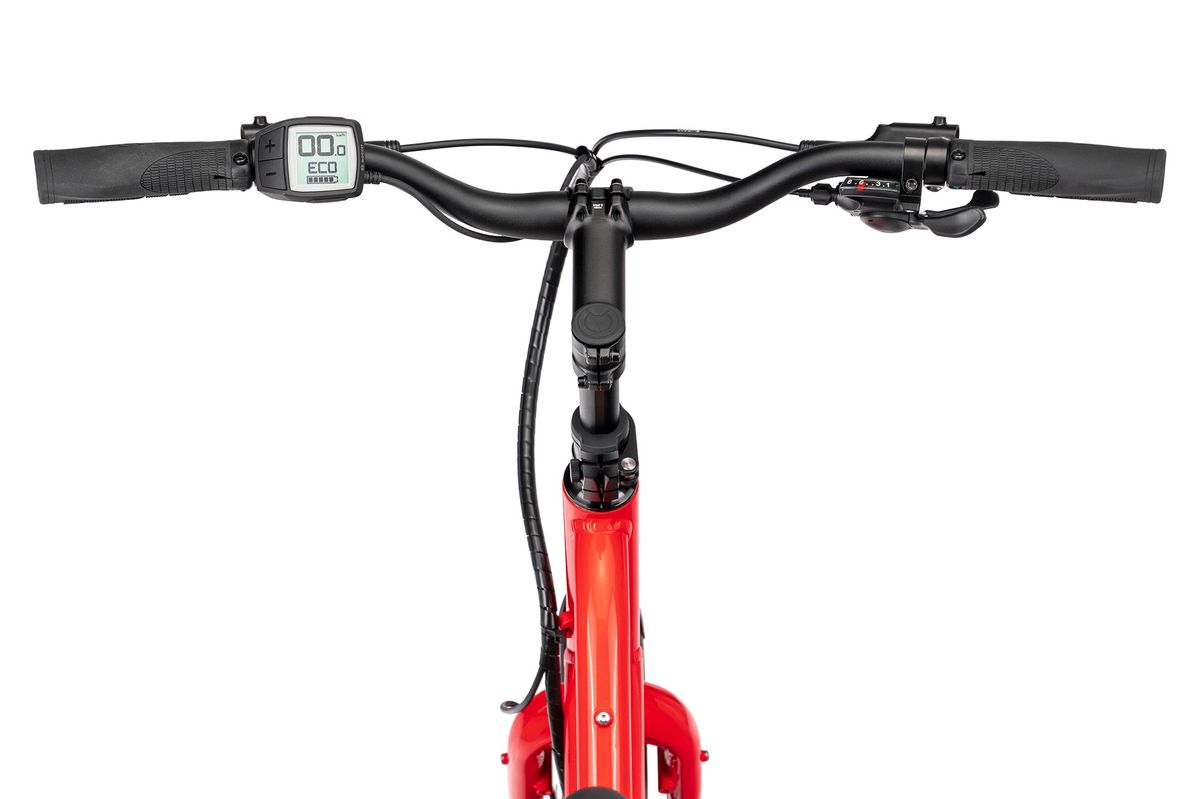

HANDLEBAR	Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE	Velo ergonomic, lock-on
SADDLE	Velo Comfort
SEATPOST	31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP	Tern Collar

BRAKES

FRONT BRAKE	Shimano, hydraulic disc 180 mm
REAR BRAKE	Shimano, hydraulic disc 160 mm
BRAKE LEVERS	Shimano, hydraulic disc
BRAKE CABLE & HOUSING	Shimano, hydraulic disc

WHEELS

FRONT HUB	Shimano disc
REAR HUB	Shimano disc
SPOKES AND NIPPLES	Stainless steel
RIMS	Kinetix Comp, for disc
TIRES	Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S)	Shimano Altus, 1 x 8 spd, trigger
REAR DERAILLEUR	Shimano Altus Shadow
CRANKSET	Tern custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL	Shimano 11-34T, 8 spd
BOTTOM BRACKET	Motor integrated
CHAIN	KMC for eBike, 8 spd
PEDALS	Urban with non-slip surface
SHIFTER CABLE & HOUSING	SP

E-SYSTEM

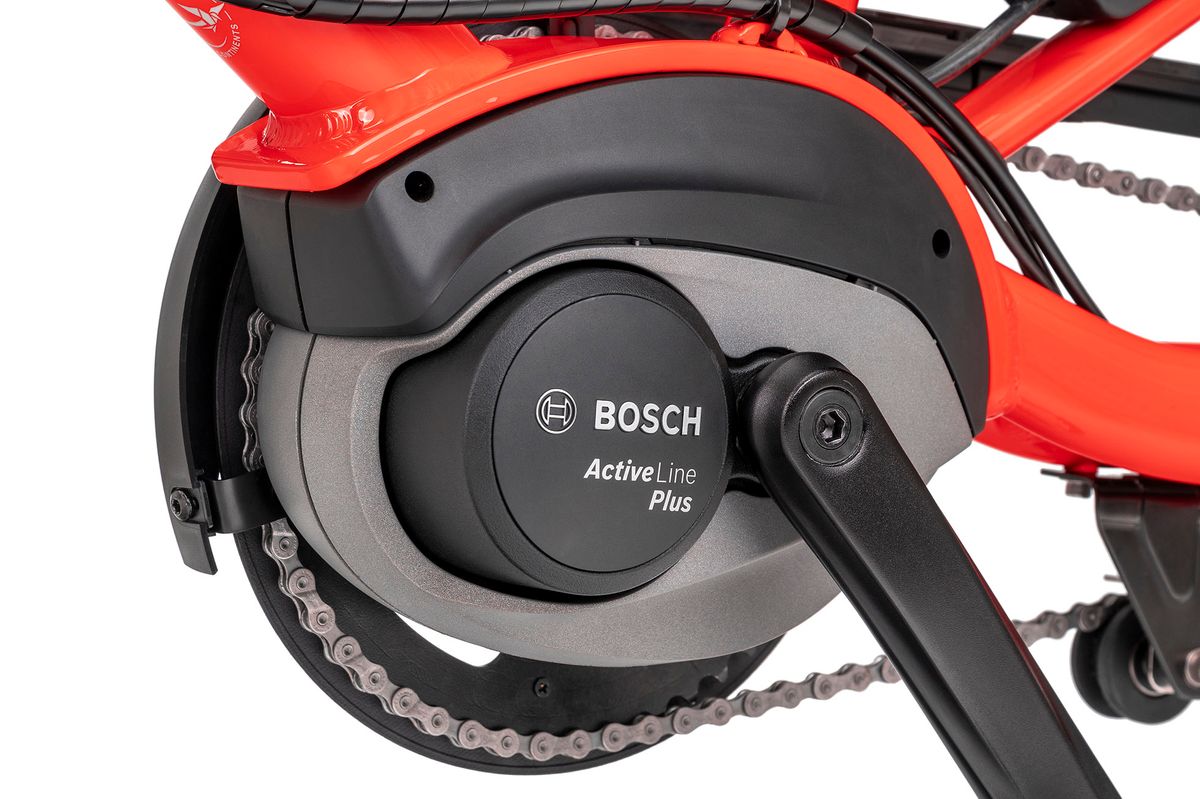

MOTOR	Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 kph

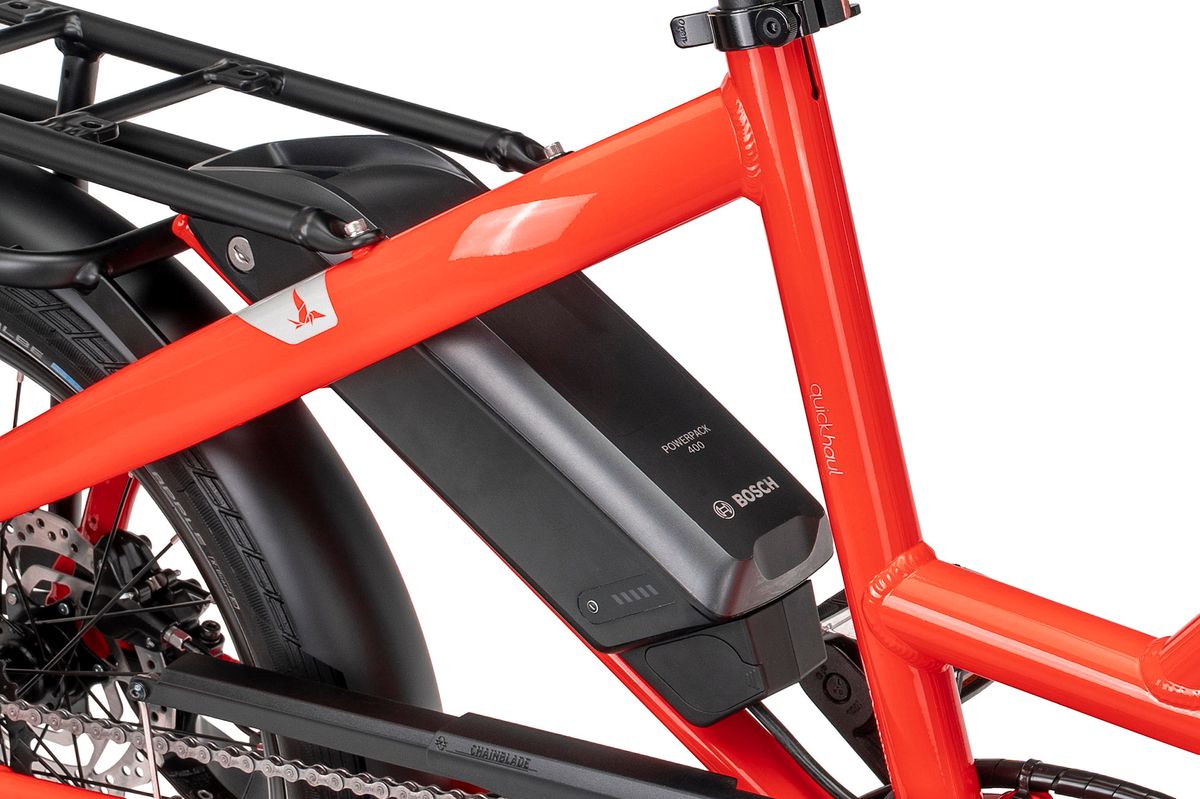

BATTERY	Bosch PowerPack 400Wh

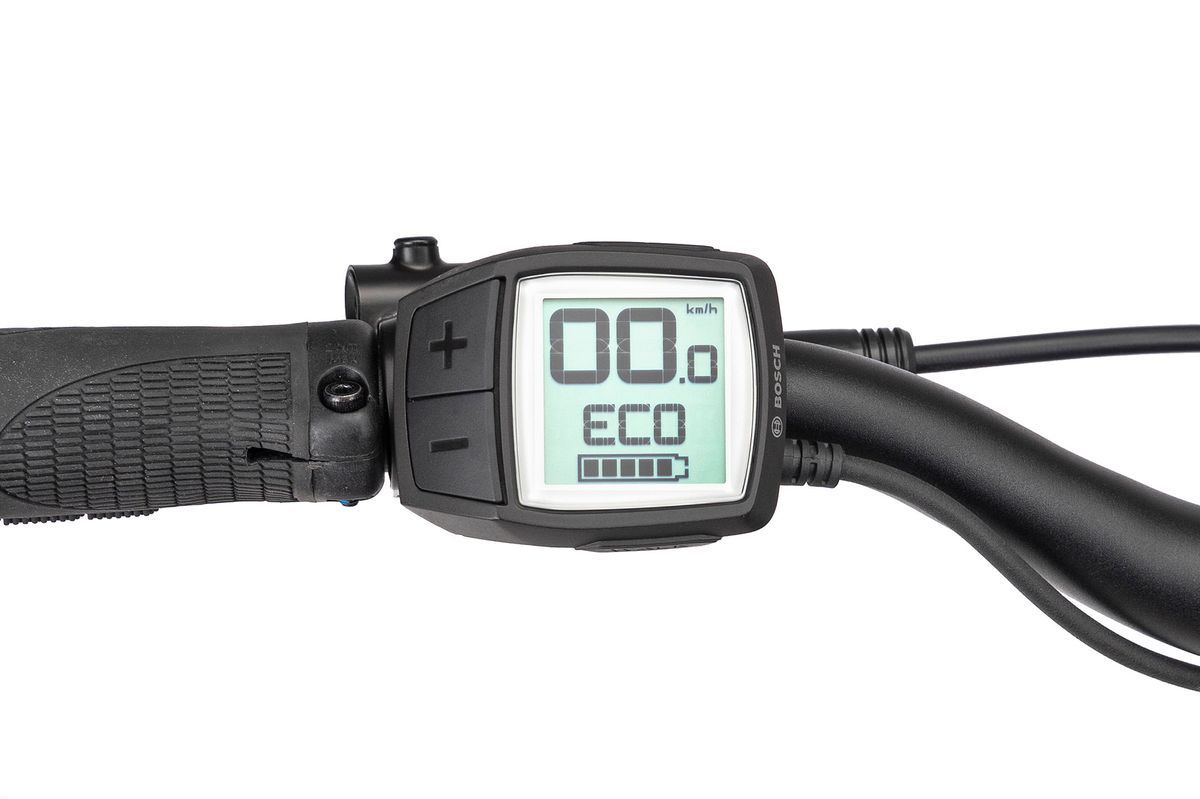

DISPLAY	Bosch Purion
RANGE	400 Wh: 54 - 105 km
CHARGER	Compact Charger, 100-240V, 2A

BELLS & WHISTLES

BELL	Aluminum
CHAINGUARD	SKS Chainblade
KICKSTAND	Pletscher design, rear mount
LUGGAGE SOCKET	Combo Mount

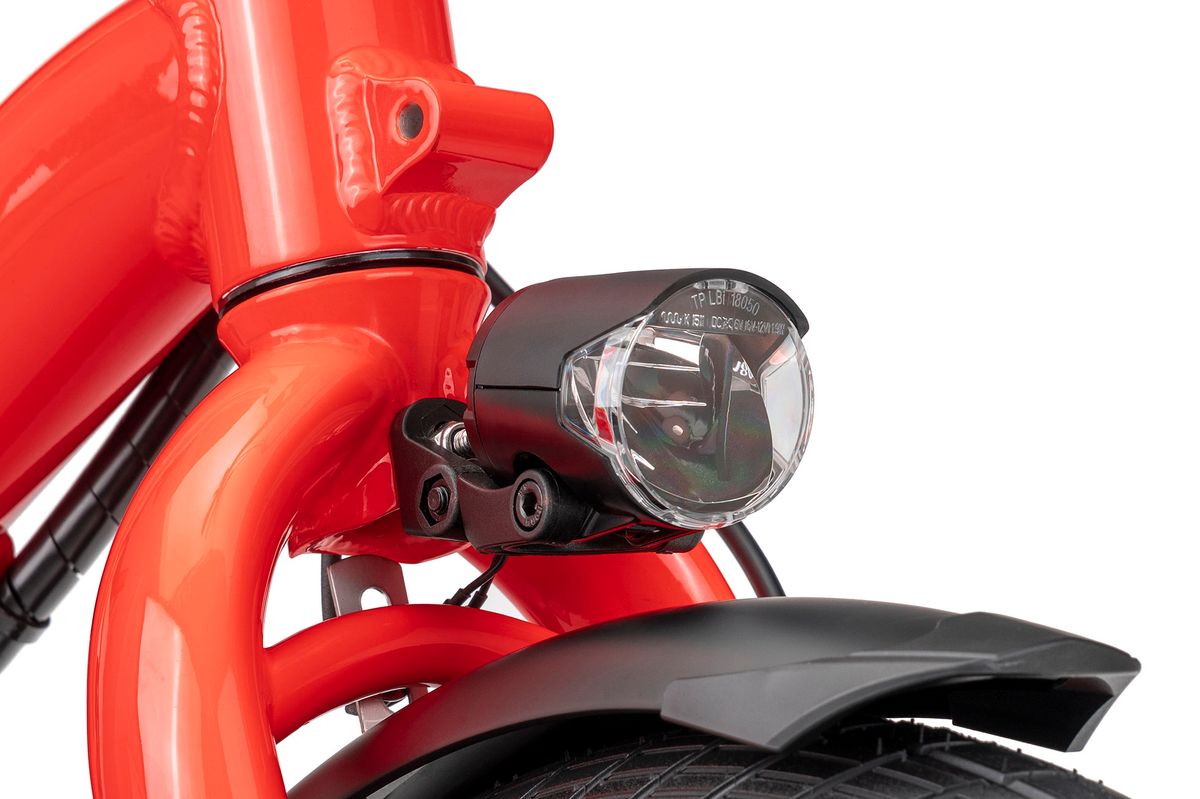

FRONT LIGHT	Herrmans, 120 lumens
REAR LIGHT	Herrmans
FENDERS	Chromeplastic, stainless hardware

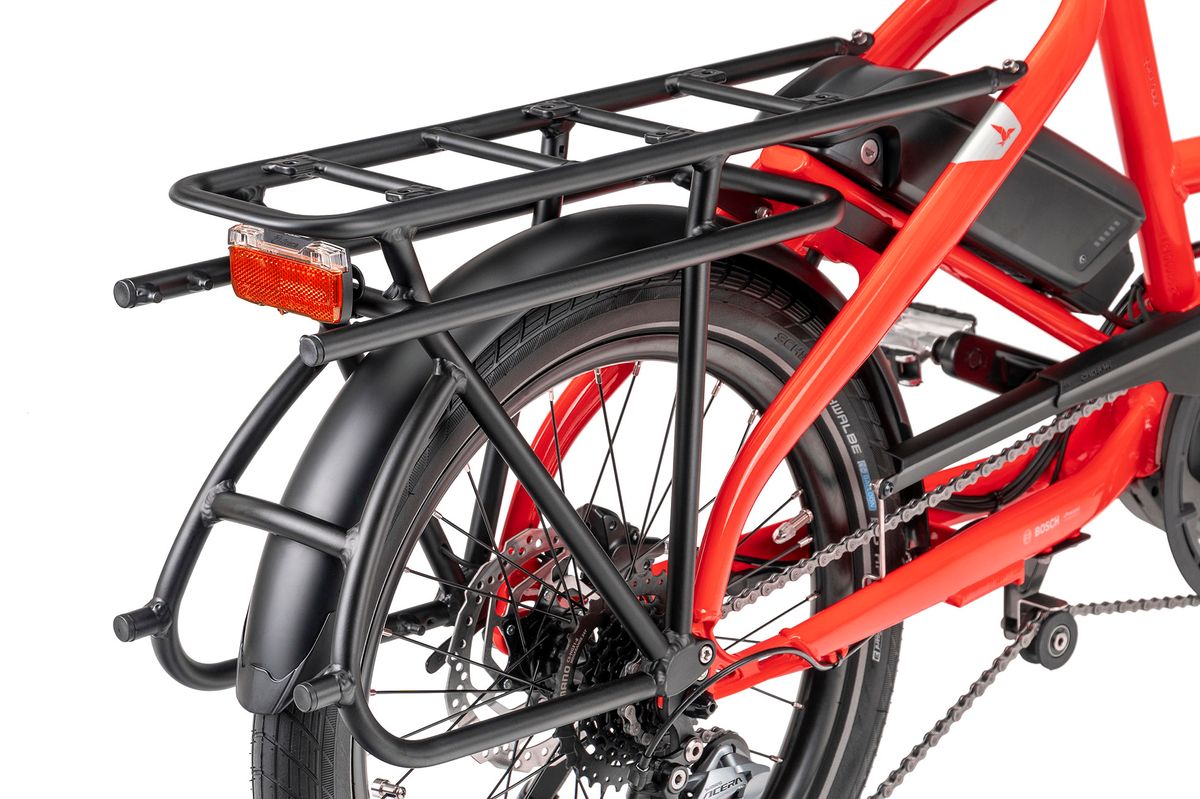

RACK(S)	Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
