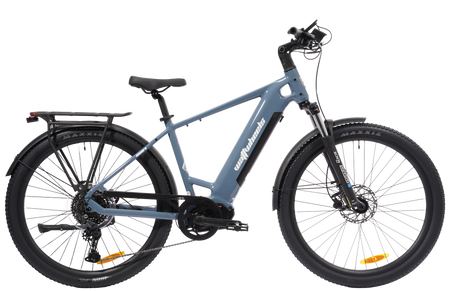

2025 WATT WHEELS E-BIG HORN MID DRIVE ( smart techology )

SKU: BS17DBU
Sale price
$4,799.00
List price
$5,099.00
You save
$300.00 (6%)
SIZE:
COLOUR:
WHEEL SIZE:
Pickup currently unavailable at In-Store Inventory
In stock! Usually ships same day to main cities around NZ. Please note Bikes can take up to 2-5 days for delivery.

Features

The eagerly anticipated Bighorn is now in stock and set to redefine excellence in the Trail and Daily use category, as recognized by Consumer.

Retaining its signature low step frame and available in three sizes, the Bighorn boasts the same sleek downtube which houses a large 720Wh capacity battery, featuring the latest Samsung 21700 cells for extended power and endurance.

Now, with the groundbreaking addition of smart technology, the Bighorn offers unparalleled connectivity through its integrated SIM module, running on the 4G network. Paired with the new Wattwheels app, users can access a range of features including bike diagnostics, theft reporting, and real-time tracking, with more innovations on the horizon.

  • Real-time GPS Location: With a 4G SIM card, track your bike's whereabouts anytime, anywhere.
  • Geo-fencing: Receive instant alerts if your bike is moved outside designated boundaries.
  • Report Stolen Bike: In the unfortunate event of theft, report your bike stolen directly through the app, triggering security measures and shutting down the bike.
  • Dealer Locator: Easily locate and connect with authorized Wattwheels dealers for support and service.
  • Remote Bike Control: Take command of your eBike's features remotely—toggle lights, and adjust PAS, all at your fingertips.
  • Remote Diagnosis: Diagnose and troubleshoot any issues seamlessly through the app, ensuring your ride is always in peak condition.

The app is included for the first year in the price of the bike but after that it must be renewed yearly at a cost of $59.95 per year. Of course if you don't want to use the app and just want to ride the bike you don't need to renew the app

THE APP CAN BE DOWNLOADED FROM THE GOOGLE PLAY/APPLE STORE. FOR INSTRUCTIONS ON HOW TO CONNECT THE BIKE AND USE THE APP PLEASE VISIT OUR YOUTUBE TO VIEW THE VIDEOS - WATTWHEELS YOUTUBE.

TO USE THE TRACKING/GPS FUNCTIONS YOU WILL NEED 4G COVERAGE ON YOUR PHONE

(Note - You can not upgrade to the app software with older bighorn models, unfortunately)

Powered by the renowned Ananda M100 motor, delivering whisper-quiet operation and an impressive 120N.m of torque, conquering the steepest climbs is effortless. Coupled with the dependable 10-speed Shimano Deore drivetrain and Shimano hydraulic brakes, the Bighorn ensures a confident and smooth ride from start to finish.

Complete with essential accessories including mudguards, rear rack, front and rear lights, and now featuring color displays with integrated USB ports for convenient device charging, the Bighorn offers unparalleled versatility and functionality.

Another addition to the 24 models is the option to add a front rack for extra storage +$99RRP

Whether tackling iconic New Zealand trails or navigating city streets, the Bighorn stands as the ultimate universal bike, offering both performance and practicality for every journey.

Specifications

Motor Ananda M100 300Watt Motor(120N.m Torque) - Canbus system
Battery 48V15Ah 21700 Samsung Li-Ion Cells 5000Mah (720WH) Smart BMS
Frame Small , Med and Large(29r) in Low Step frames. (option to purchase front rack +$99)
Speed Up to 42km/h
Brakes Tektro Hydraulic 180mm Rotors
Derailleur Shimano Deore 10 Speed Linkglide
Cassette Shimano 11-43 LG400
Shifter Shimano Deore 10sp M5130
Crankset Ananda Isis 44T, 170mm
Display Ananda D16 Colour Display with USB charge port
Front Fork Suntour XCM34 E-Bike rated with Boost & Lockout - 100mm Travel
Tyres Maxxis Ikon 27.5 *2.25 - (29 on L 19inch model)
Charger Sans 48V3Ah Smart Charger
Seat Foam Velo  - Black
Smart Bike Yes - Has an inbuilt sim module that can be paired with the Wattwheels App.
Chain Shimano LG500
Seat Post 31.60 Alloy
Hubs Sealed Bearing Boost
Rims Alexrims DP30 27.5/29 13G*36H
Handlebar Promax 680mm, 31.8, 10mm Rise (Sweep on Low step frames)
Grips Velo 140mm Lock On
Throttle Thumb Left hand (can be removed)
Hanger Sram UDH
Net Weight 24kg (battery + 3.75kg)

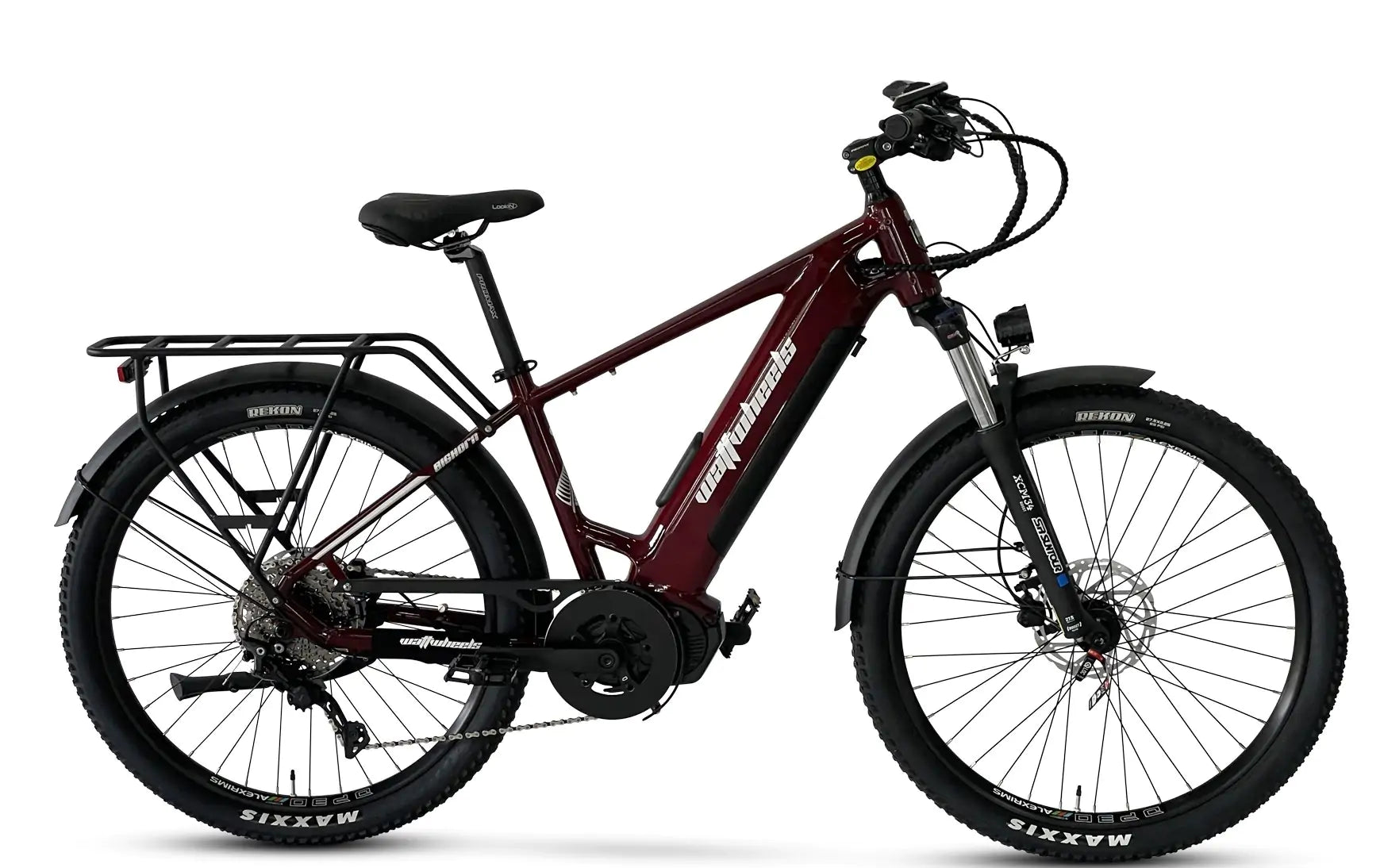

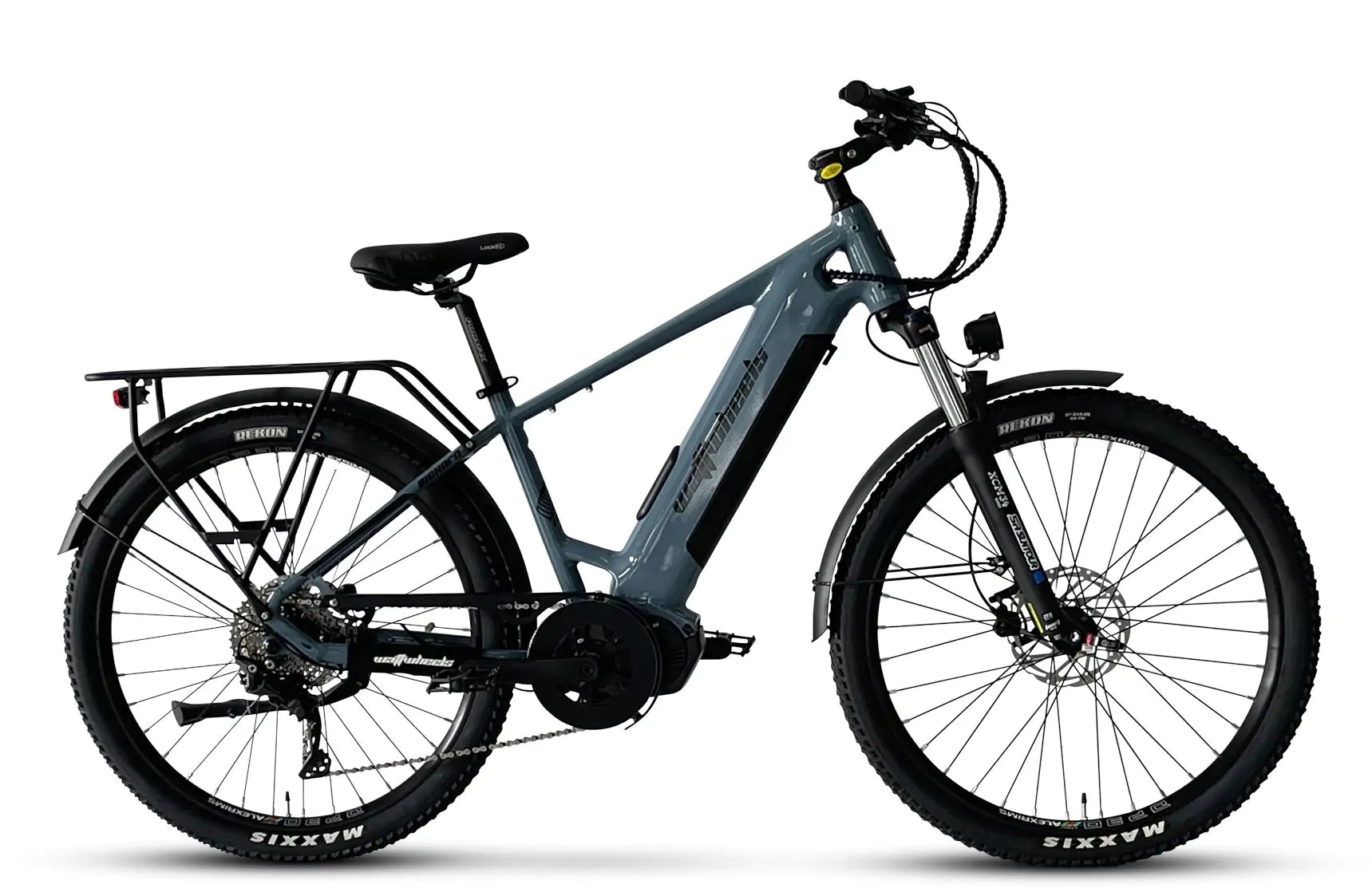

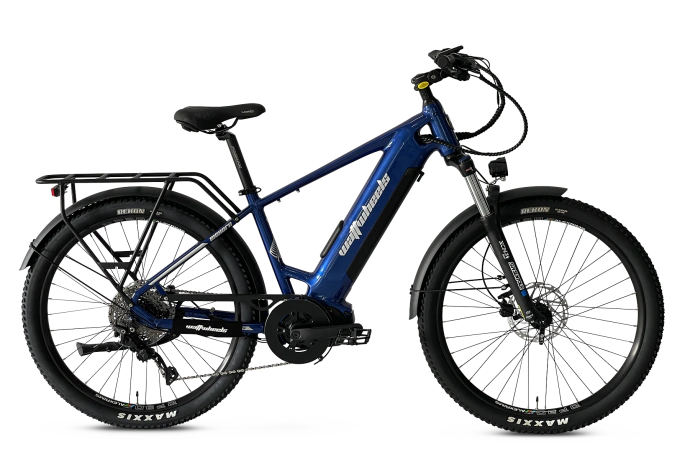

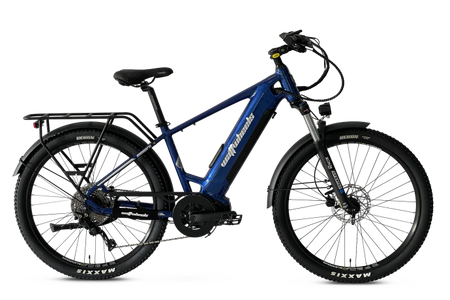

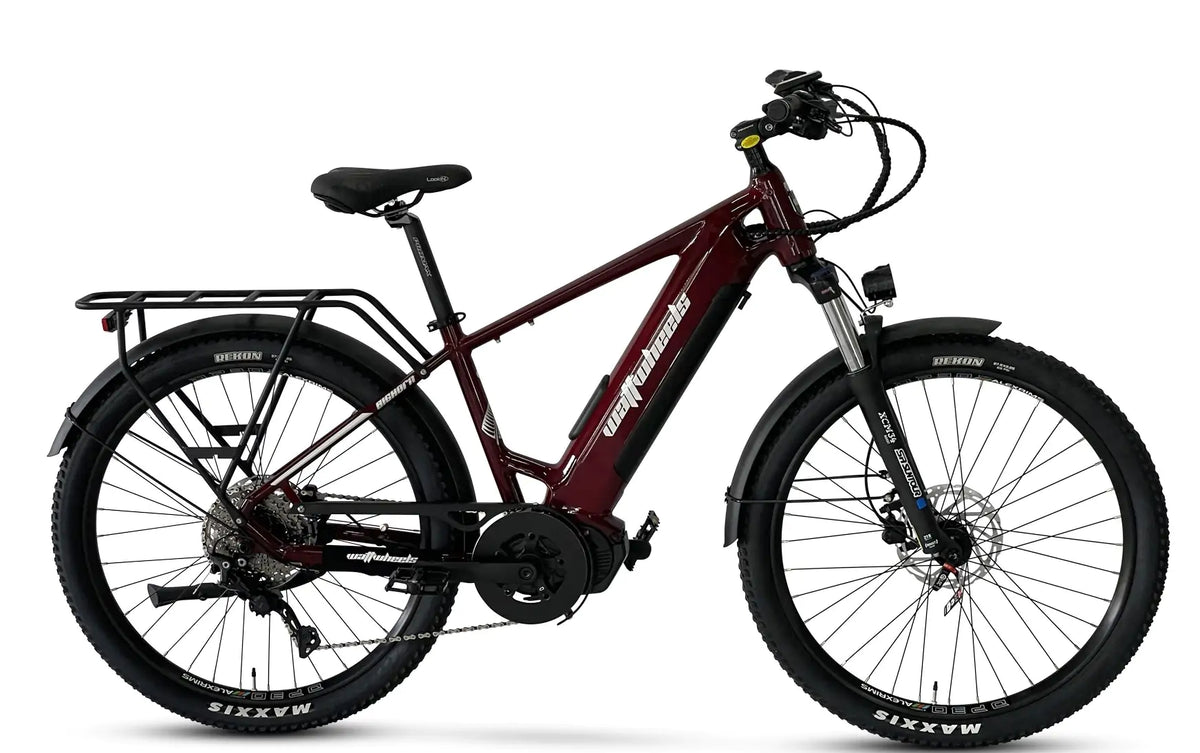

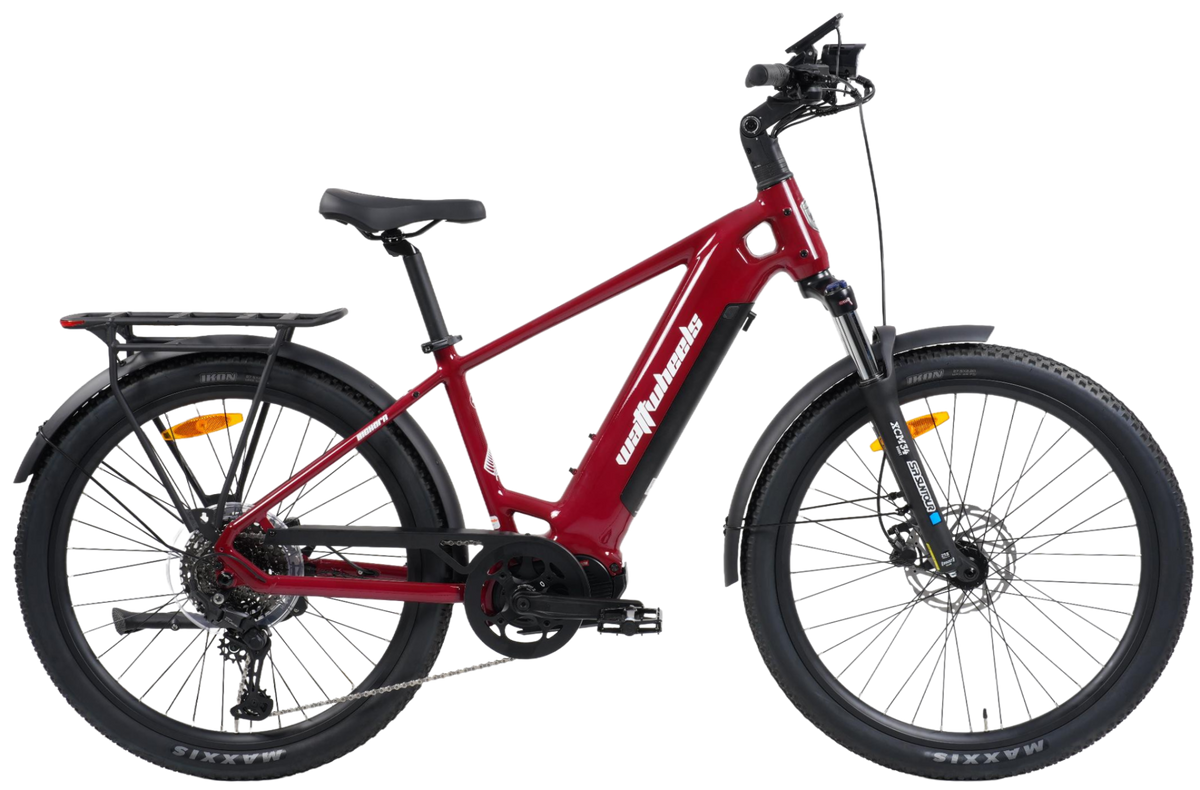

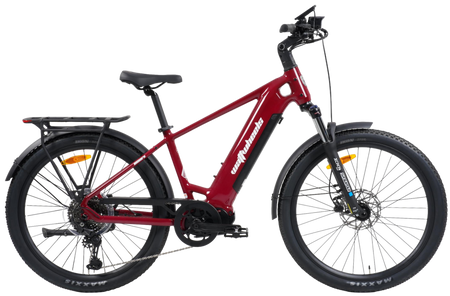

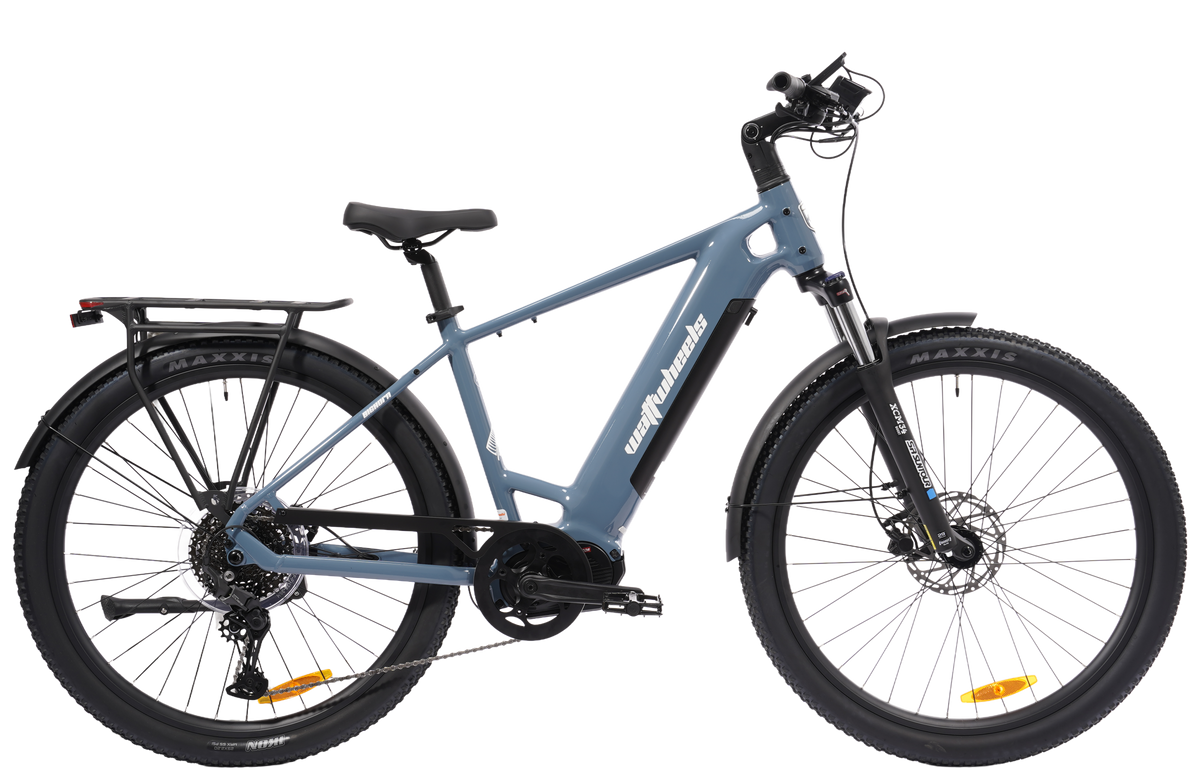

Colours Misty Blue, Moroccan Red or Deep Sea Blue
Warranty Full Comprehensive - 5 years frame, 2 years motor/battery/display and 12months on mechanical components
Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 130 kg
